PL52 manual probe head cable
| Cable name | Part number | Length |
| PL52 | A-1016-6500 | 275 mm to 550 mm (10.83 in to 21.65 in) |
This is a coiled cable with a round 5-pin Franz Binder plug at end 'A' and a moulded 90° 5-pin DIN plug at end 'B'. It is used on Stiefelmayer CMMs but differs significantly from the standard PL28 cable design.
End 'A' | Wire | End 'B' | Signal |
|---|---|---|---|
5 | Red | 1 | Head LED cathode |
n/a | Screen | 2 | Screen |
4 | Yellow | 3 | Head LED anode |
1 | Blue | 4 | Probe circuit |
2 | Green | 5 | Probe circuit |

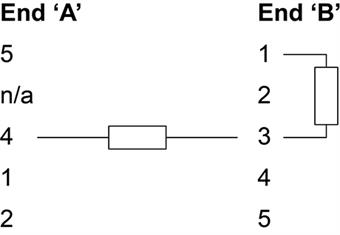

NOTE: The in-line and linked resistor shown above are 1K2Ω with 1% tolerance. They protect Renishaw probe head LEDs from higher currents of non-Renishaw interfaces.
