SPA3-2 installation

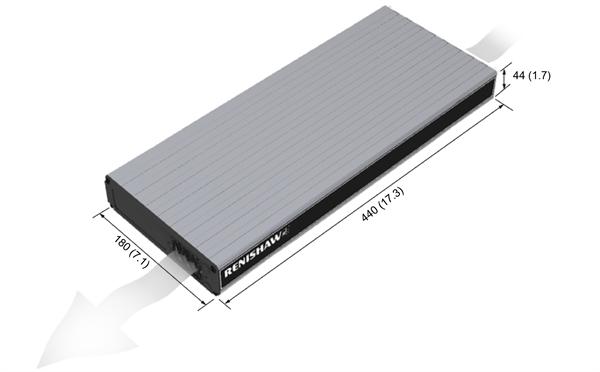

The SPA3-2 unit draws air from the right hand side when viewed from the front and expels air out of the left hand side. A minimum clearance gap of 10 mm is necessary between the sides of the unit and any potential obstruction. The dimensions shown on the above drawing are in mm (in).
Mounting the SPA3-2
The SPA3-2 is supplied with a rack mounting kit, this allows the SPA3-2 to be fitted into a standard 19" rack.

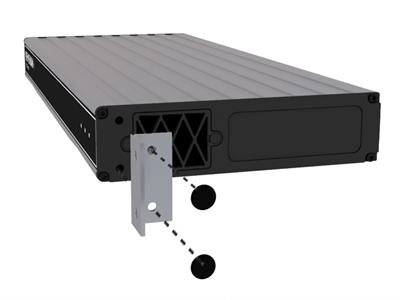

Fitting mounting brackets
NOTE: The screws supplied with this kit are M5 × 6 mm countersink type.
