Примеры крепежных приспособлений для СТЗ

Смотрите примеры модульных приспособлений для СТЗ, в том числе примеры применения регулируемых, зажимных, магнитных компонентов, а также компонентов, имеющих колонны, и прочих компонентов.

Примеры модульных регулируемых приспособлений

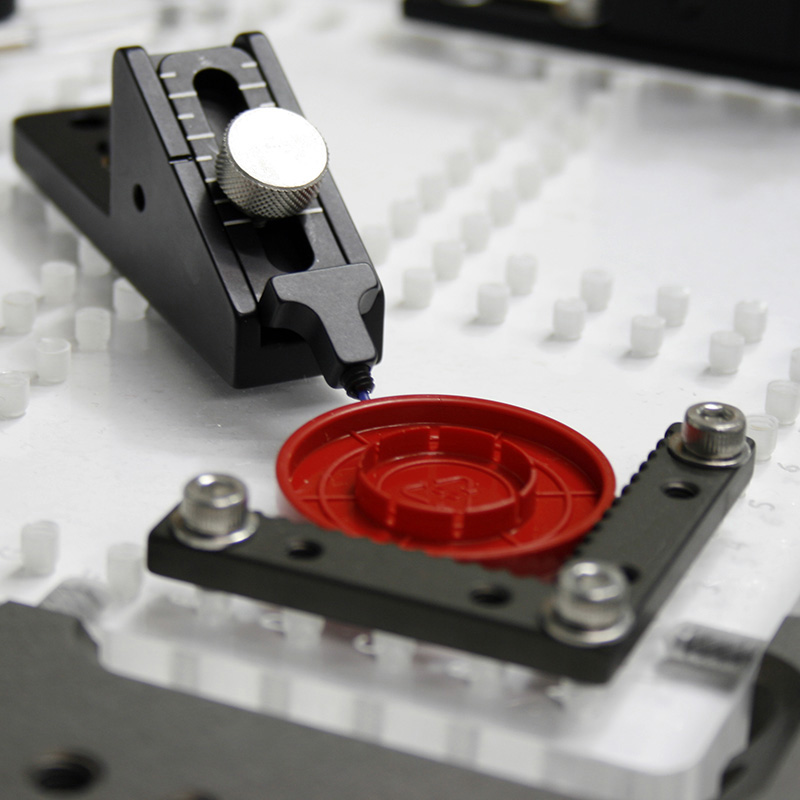

Mirco sliding pusher clamp application example

For securing small and delicate parts using a sprung pointed tip, with minimum force and contact. The tip is adjustable to various heights for a variety of different components.
[800 x 800] [135kB]

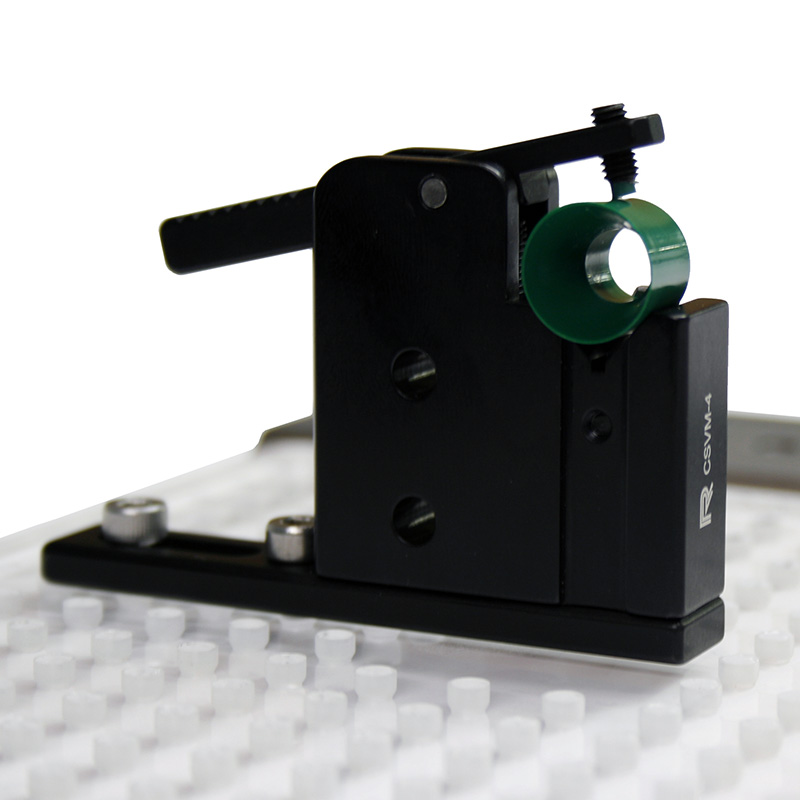

Plastic part being held with the micro V spring clamp

For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter components and also an adjustable end stop.
[800 x 800] [100kB]

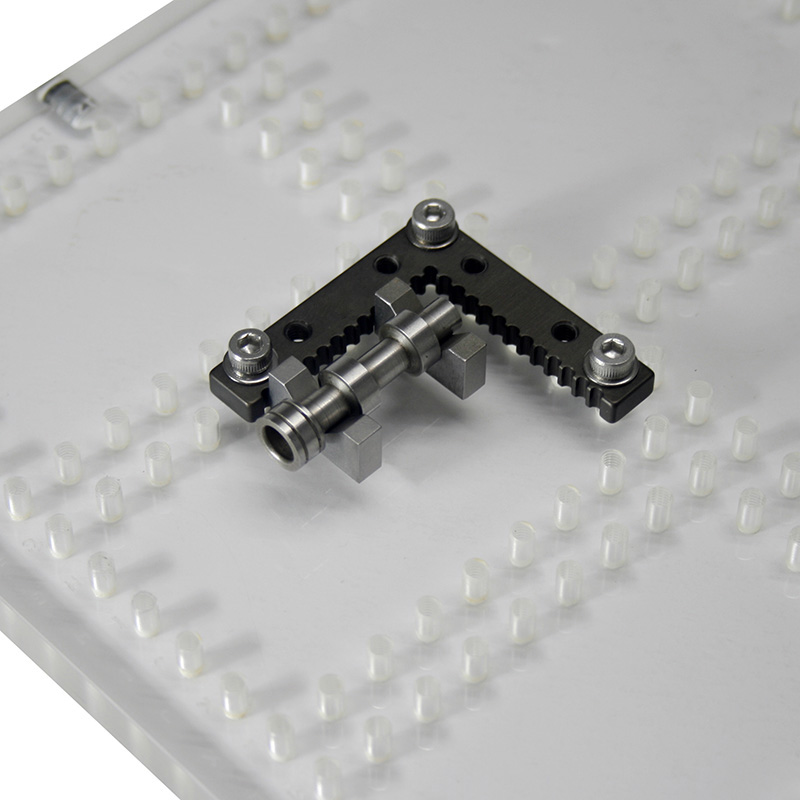

Fixturing example for a micro V spring clamp

For holding parts in a V with a spring arm and adjustable end stop.
[800 x 800] [99kB]

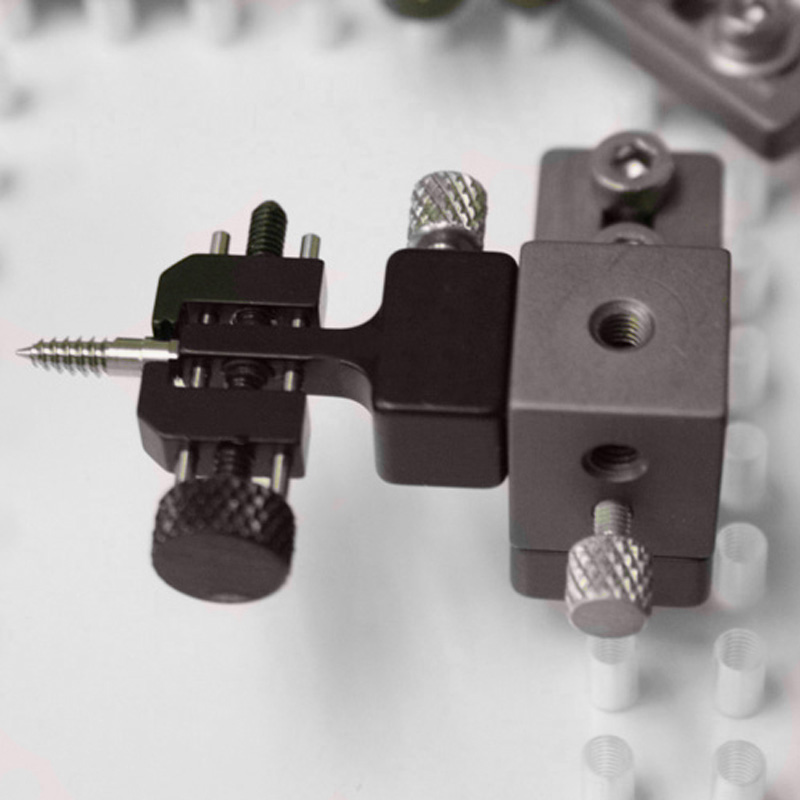

VMR-1525-4 rotational micro v application image

VMR-1525-4 rotational micro v application image
[1200 x 1200] [180kB]

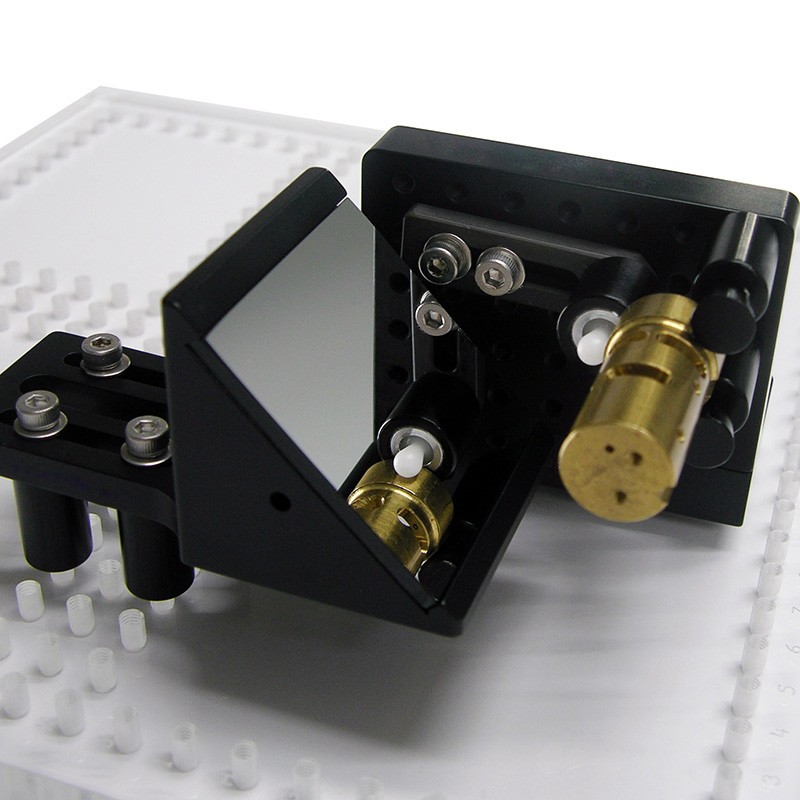

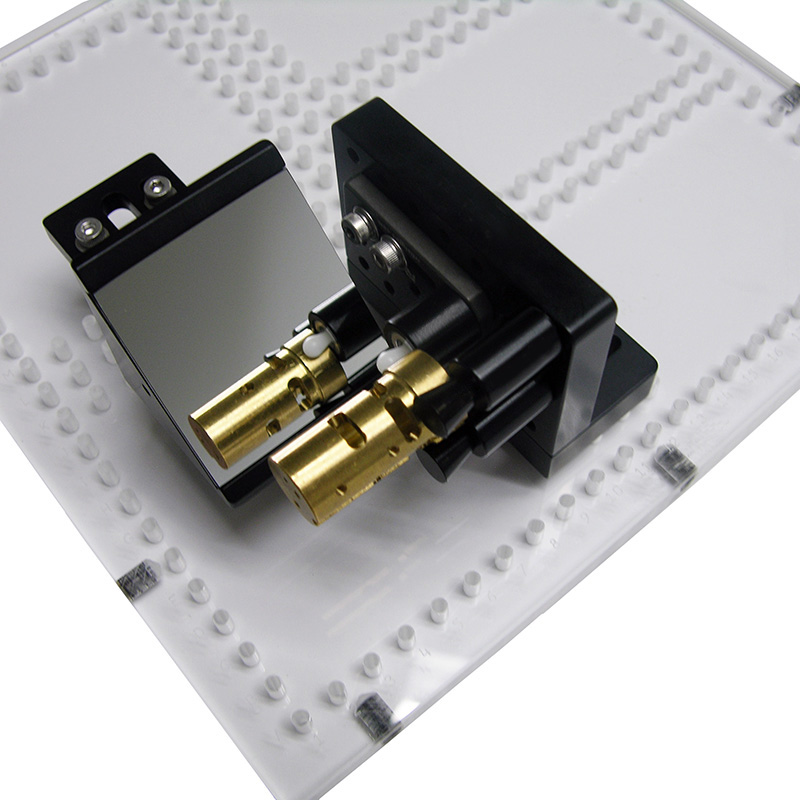

Large 45° adjustable slide mirror for use with M4 and M6 fixturing components

To aid in viewing and inspecting the end of a part.
[800 x 800] [165kB]
Large 45° adjustable slide mirror for use with M4 and M6 fixturing components

To aid in viewing and inspecting the end of a part.
[800 x 800] [149kB]

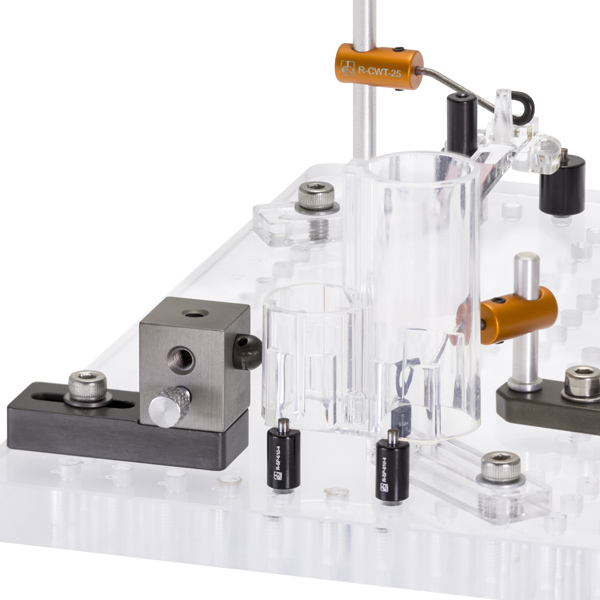

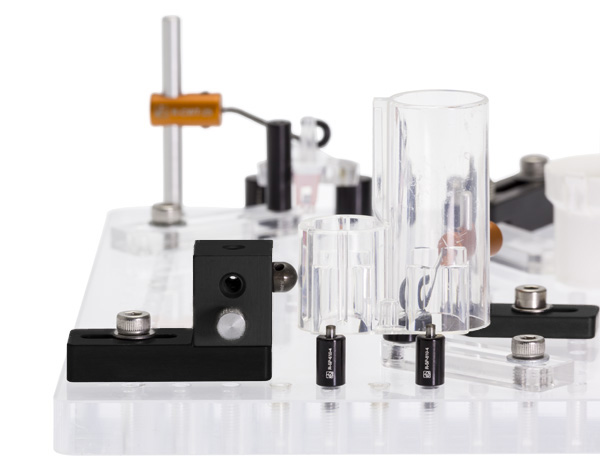

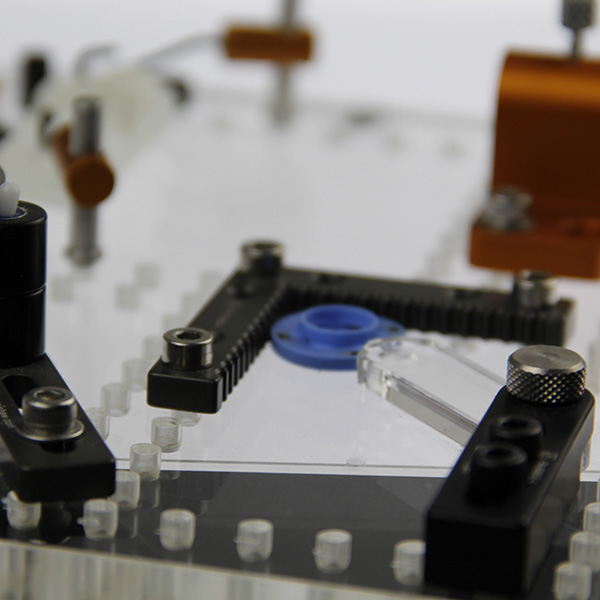

Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs

Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
[800 x 800] [148kB]
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with

Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with QLC
[800 x 800] [121kB]
45° adjustable slide mirror for use with M4 fixturing components

This adjustable slide mirror helps to view and inspect features on parts, without refixturing. It is recommended for use on vision and multi-sensor machines.
[600 x 600] [90kB]
30 mm long adjustable slide with M4 thread

This adjustable aluminium slide is ideal for placing fixturing components between threads on the base plate. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[578 x 578] [153kB]
Adjustable slide with acrylic extension and M4 thread

This adjustable slide with acrylic extension is used to increase the reach of the fixturing components on acrylic fixture plates, where backlighting is required. It is recommended for use on vision and multi-sensor machines.
[600 x 600] [86kB]

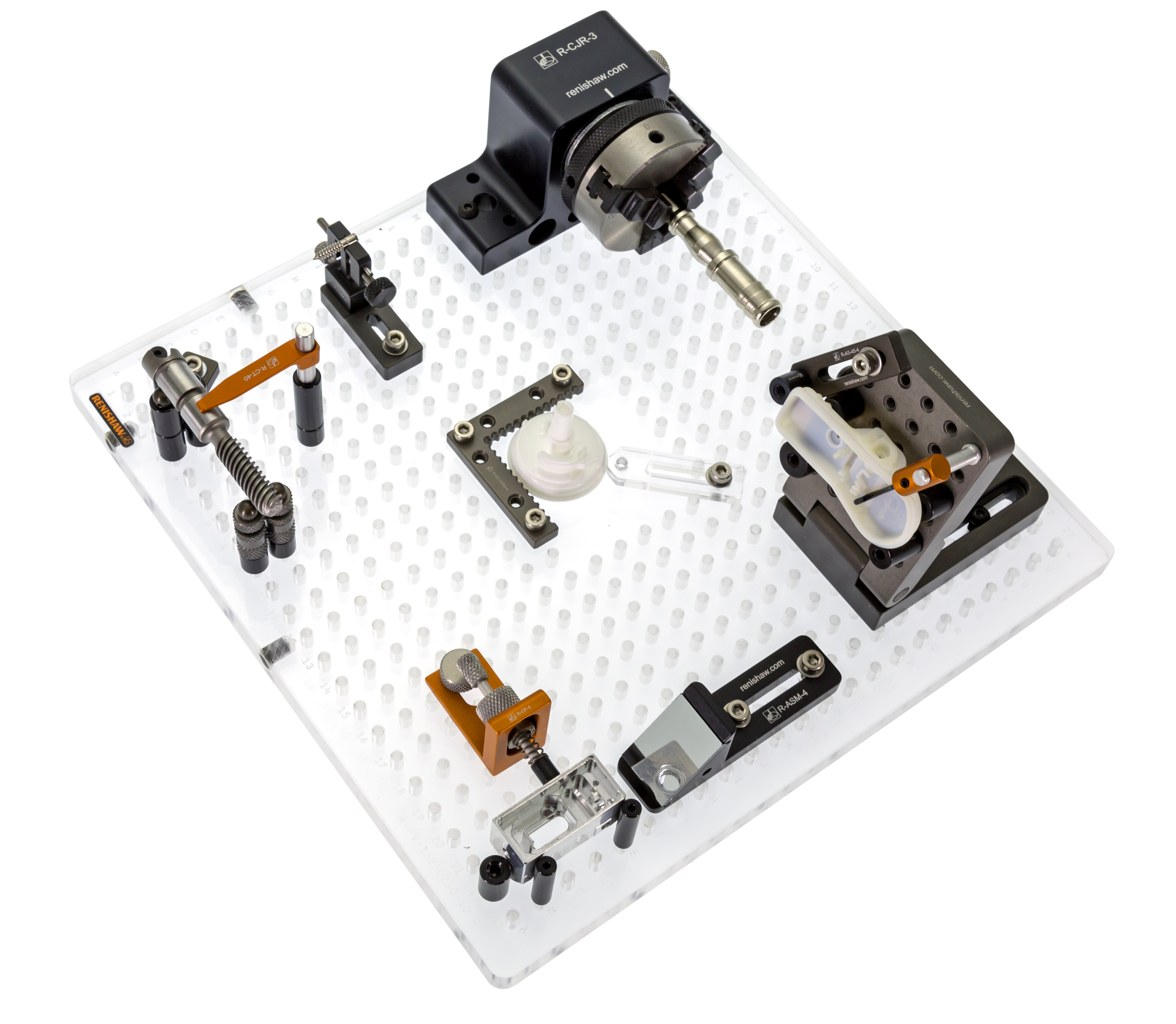

Fixturing example on an acrylic plate, using a corner viewer, adjustable angle plate, adjustable slide mirror and rotating 3-jaw clamp

Fixturing example on an acrylic plate.
[4398 x 3828] [2.2MB]

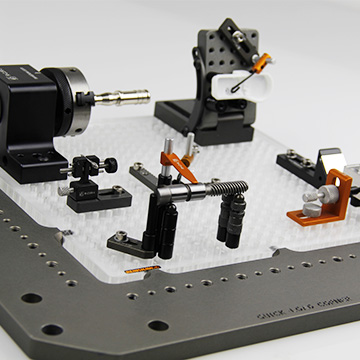

Компоновка деталей на крепёжном приспособлении quick load corner

No description available
[3465 x 2283] [1.9MB]

Примеры модульных приспособлений с зажимами

Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs

Plastic part held with Spring pusher standoff clamps, Adjustable slide and Pin standoffs
[800 x 800] [180kB]

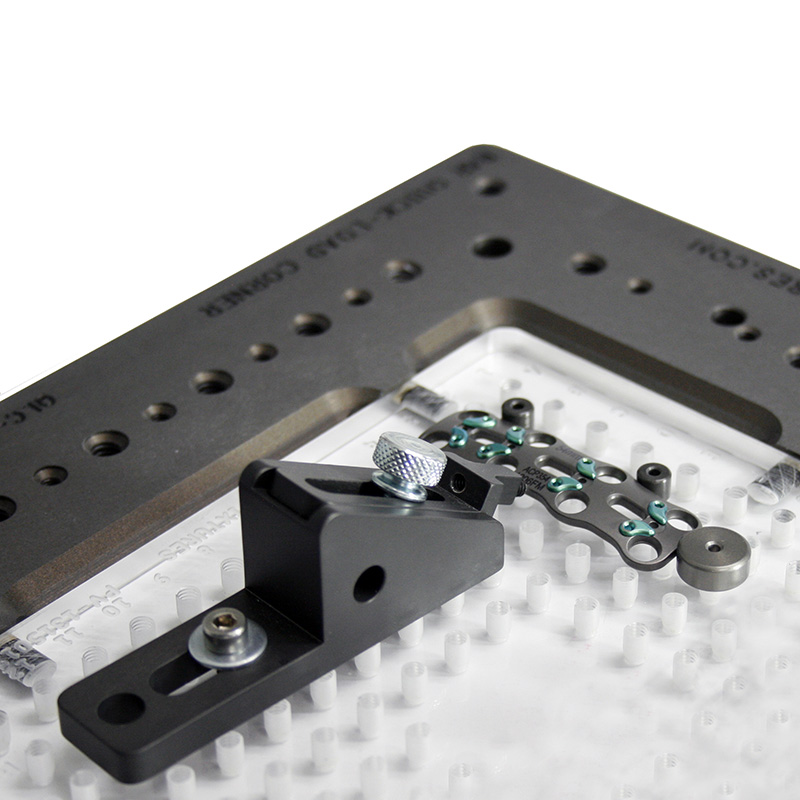

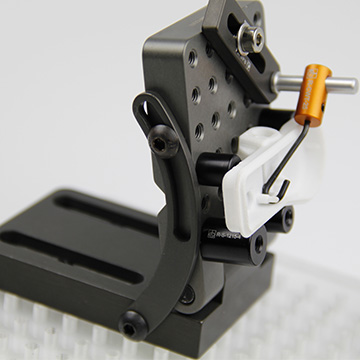

12.7 mm x 50 mm x 75 mm adjustable angle plate

This adjustable angle plate is ideal for holding components at an angle. It can be adjustable up to 180° and has a Nituff® hard anodised coating, to resist wear and scratching. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[360 x 360] [52kB]
component on vision

No description available
[360 x 360] [53kB]

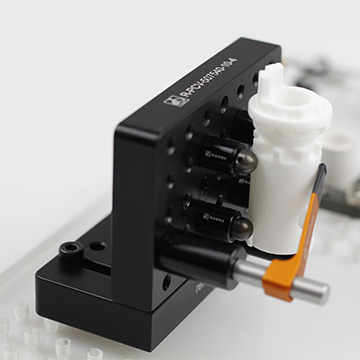

50 mm x 75 mm x 40 mm vertical base plate

This vertical base plate is ideal for holding components vertically. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[360 x 360] [44kB]
multiple components on vision fixture

No description available
[360 x 360] [69kB]

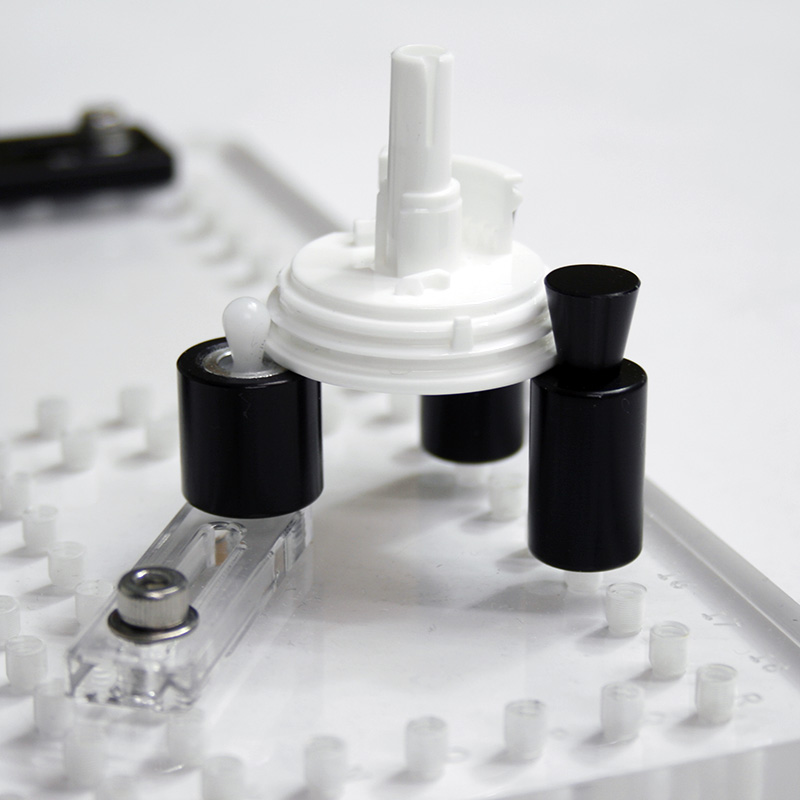

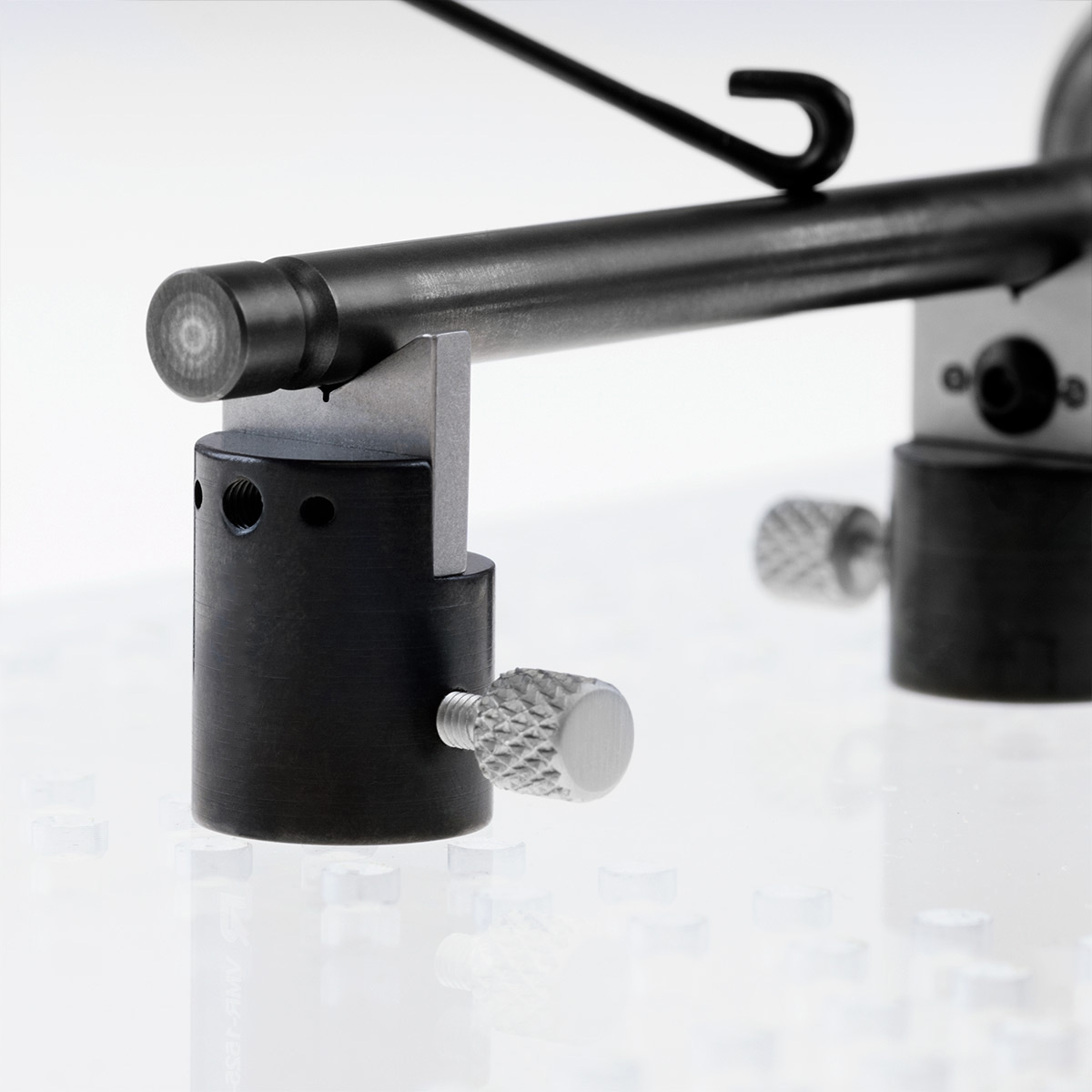

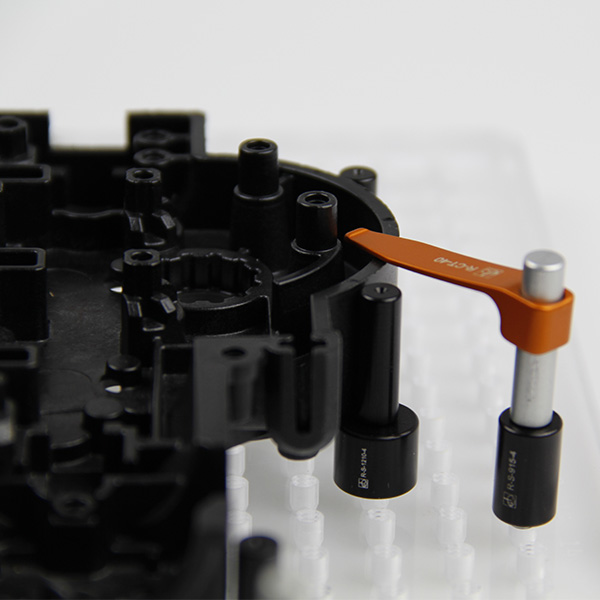

Application image for a spring puser standoff clamp

Fixturing example using a spring pusher standoff clamp.
[800 x 800] [106kB]

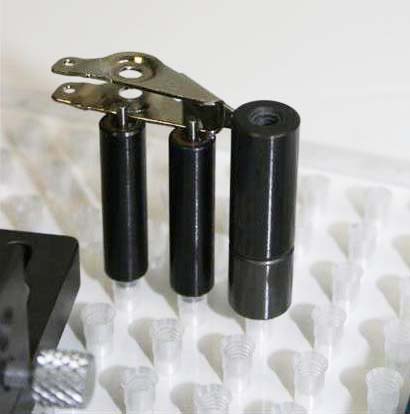

Application image for a micro V spring clamp

Fixturing example using a micro V spring clamp.
[800 x 800] [87kB]
Application image for micro V spring clamp

Fixturing example using a micro V spring clamp.
[689 x 800] [106kB]
Application image for the micro sliding pusher clamp

Fixturing example for the micro sliding pusher clamp.
[800 x 800] [147kB]
Ø12 mm x 50 mm aluminium standoff with M4 thread

This aluminium standoff is ideal to elevate and locate parts. It is hard coat anodised and recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[600 x 600] [76kB]
Ø12 mm x 10 mm aluminium standoff with M4 thread

This aluminium standoff is ideal to elevate and locate parts. It is hard coat anodised and recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
[600 x 600] [77kB]

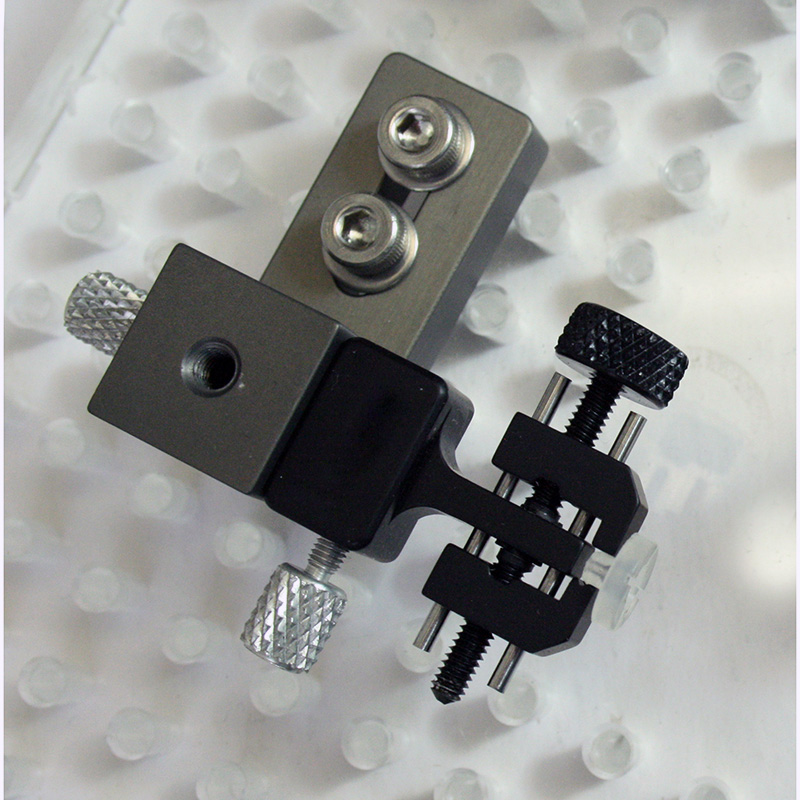

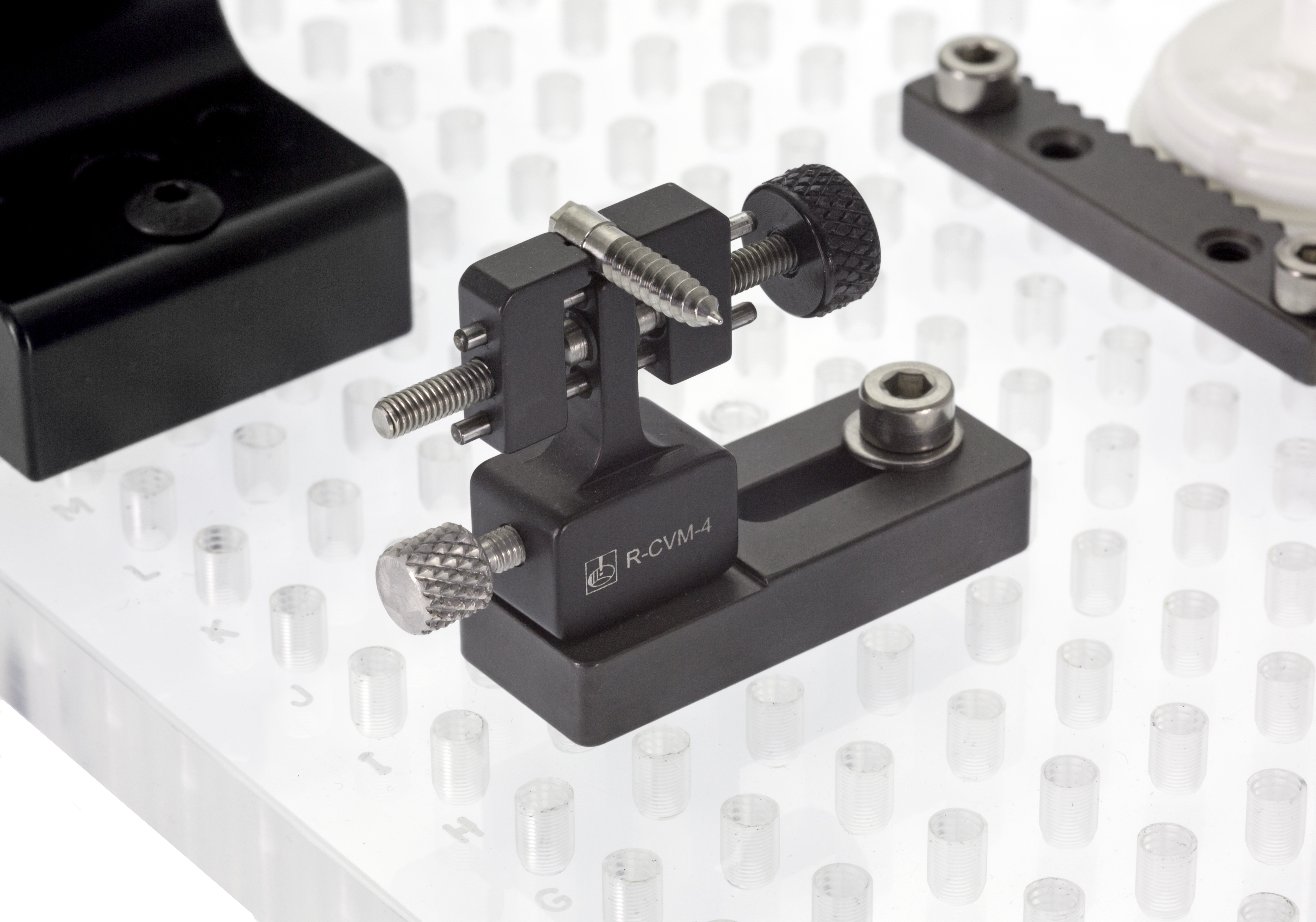

Fixturing example using a micro vice clamp

Fixturing example using a micro vice clamp. Ideal for holding parts horizontally or vertically.
[5278 x 3699] [3.8MB]
Fixturing example on a multi-window plate

Fixturing example for ecommerce.
[600 x 600] [126kB]
Fixturing example on a multi-hole vision plate

Fixturing example for ecommerce.
[600 x 600] [97kB]
Mirco sliding pusher clamp application example

For securing small and delicate parts using a sprung pointed tip, with minimum force and contact. The tip is adjustable to various heights for a variety of different components.
[800 x 800] [135kB]
Plastic part being held with the micro V spring clamp

For locating and securing parts in a V. The clamp has an adjustable spring arm for different diameter components and also an adjustable end stop.
[800 x 800] [100kB]

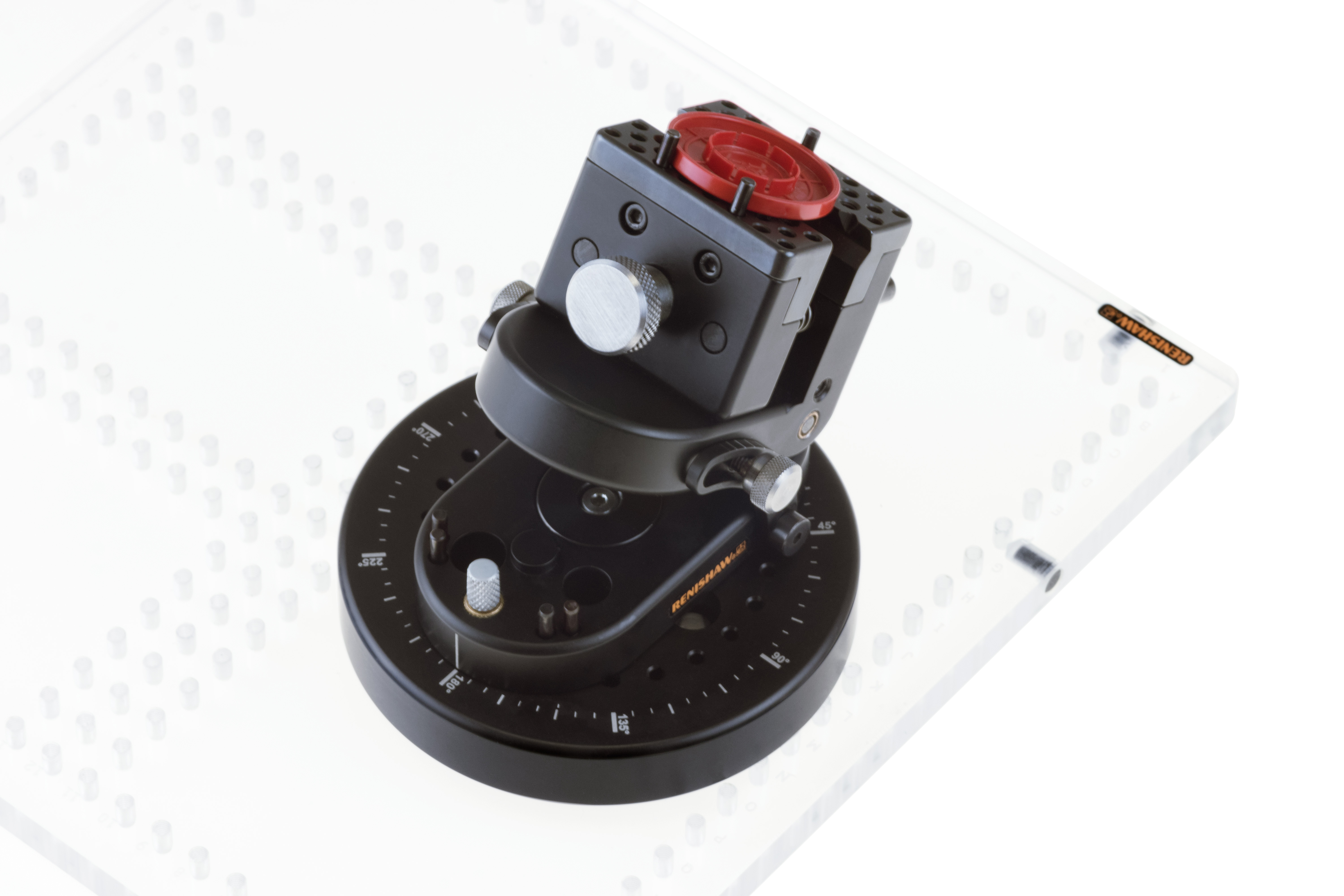

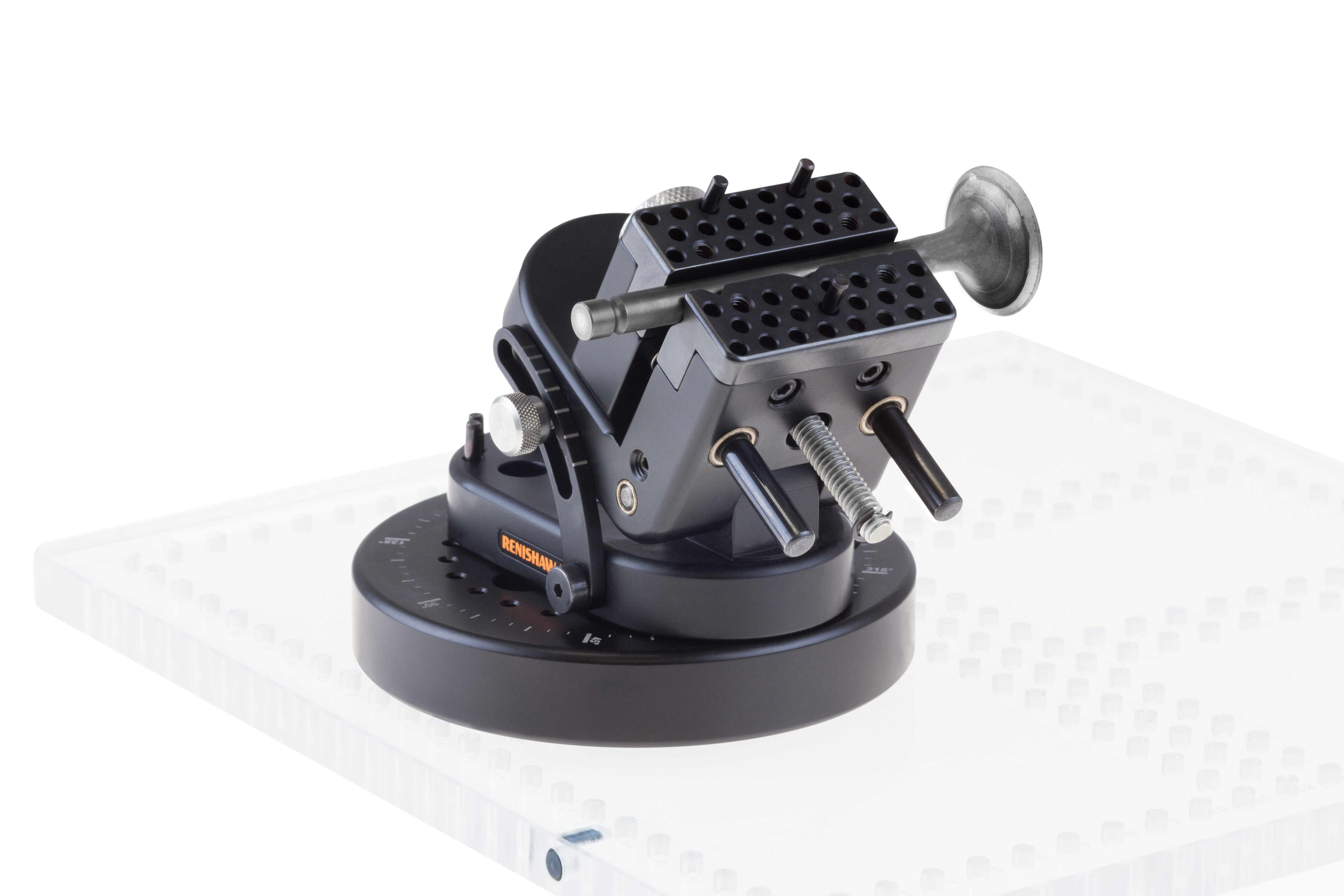

R-CRAV rotational angle vice

R-CRAV rotational angle vice with open jaw
[6000 x 4000] [2.0MB]
R-CRAV rotational angle vice

R-CRAV rotational angle vice applicaiton image
[6000 x 4000] [1.8MB]
R-CRAV rotational angle vice

R-CRAV rotational angle vice application image
[5848 x 3898] [2.2MB]

Примеры модульных приспособлений с магнитами

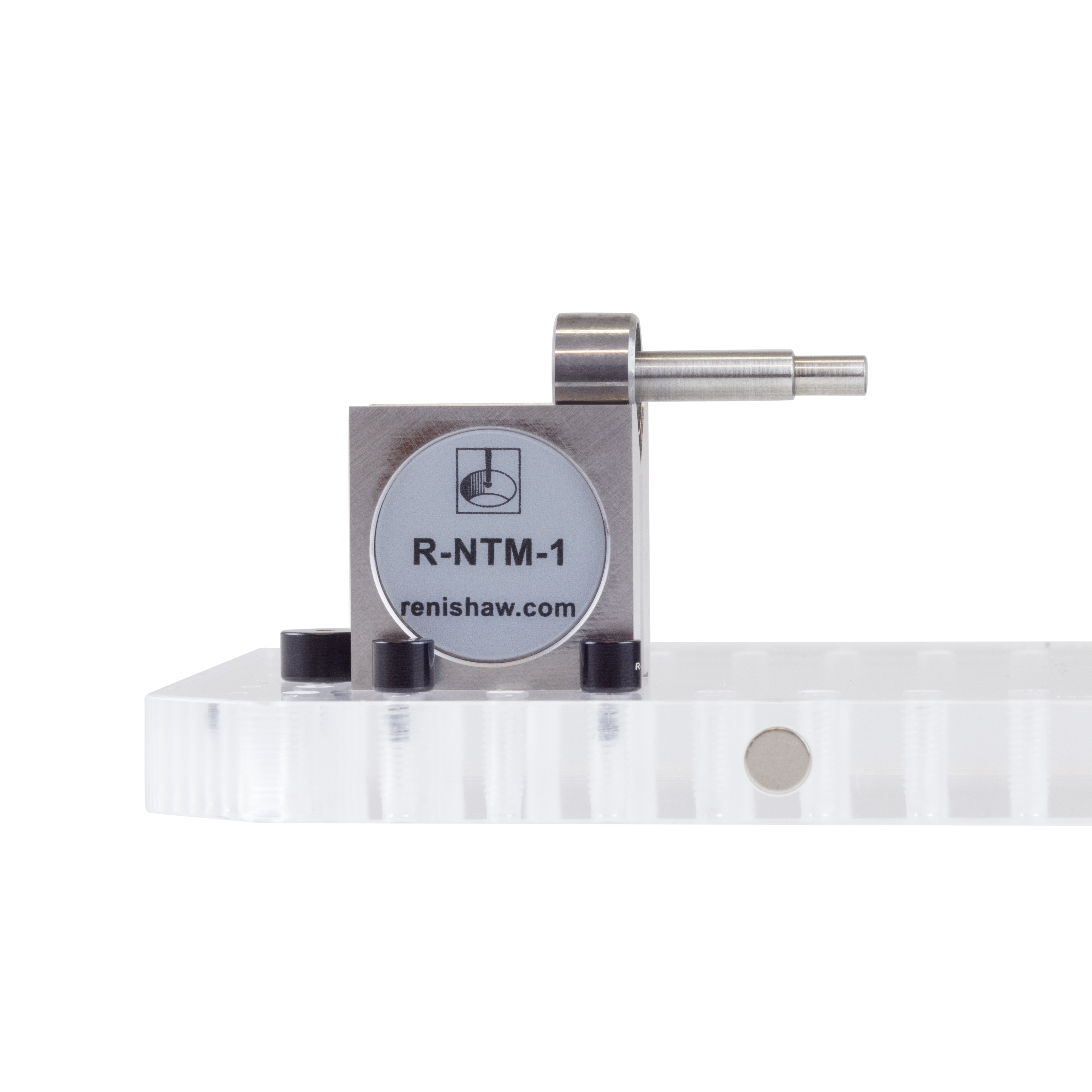

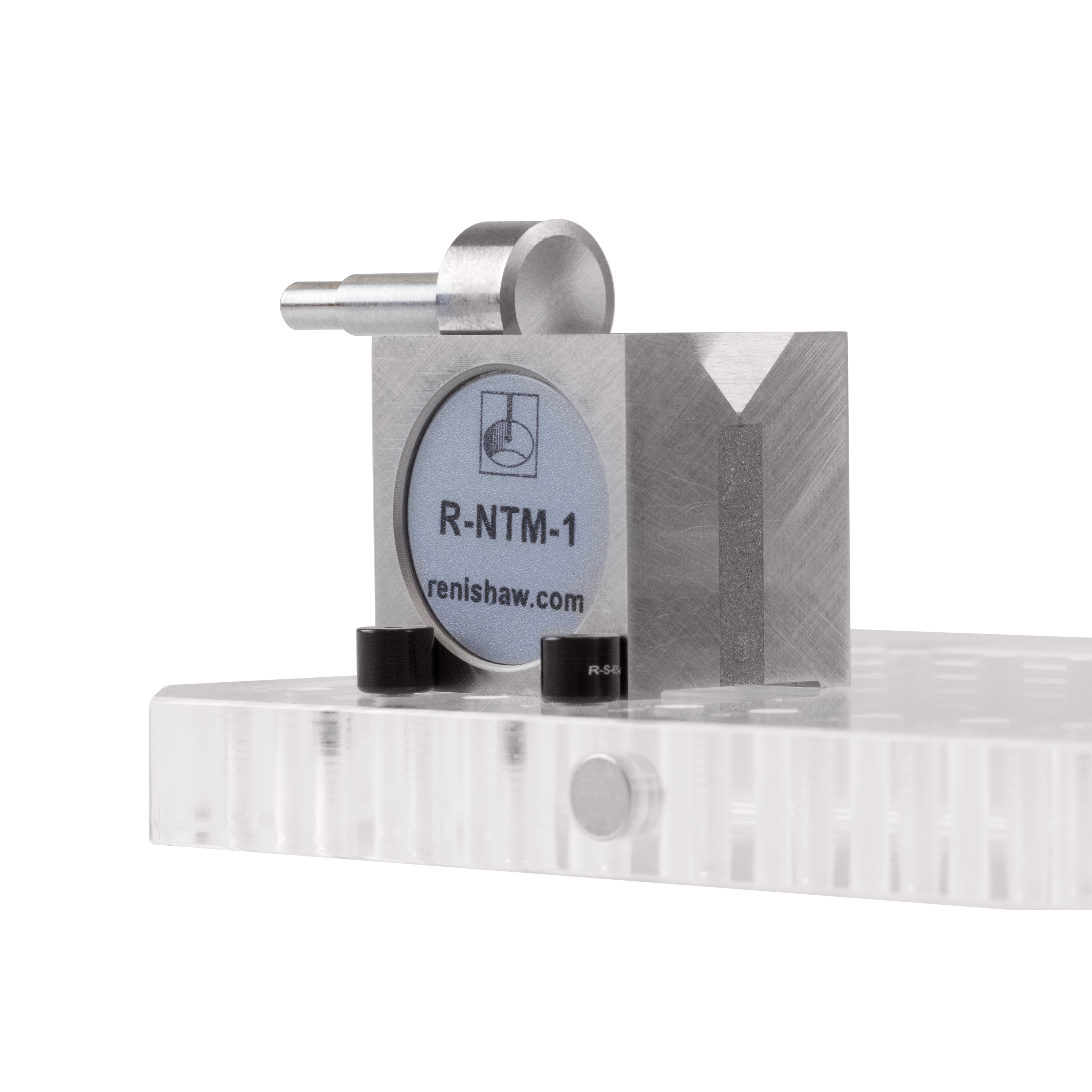

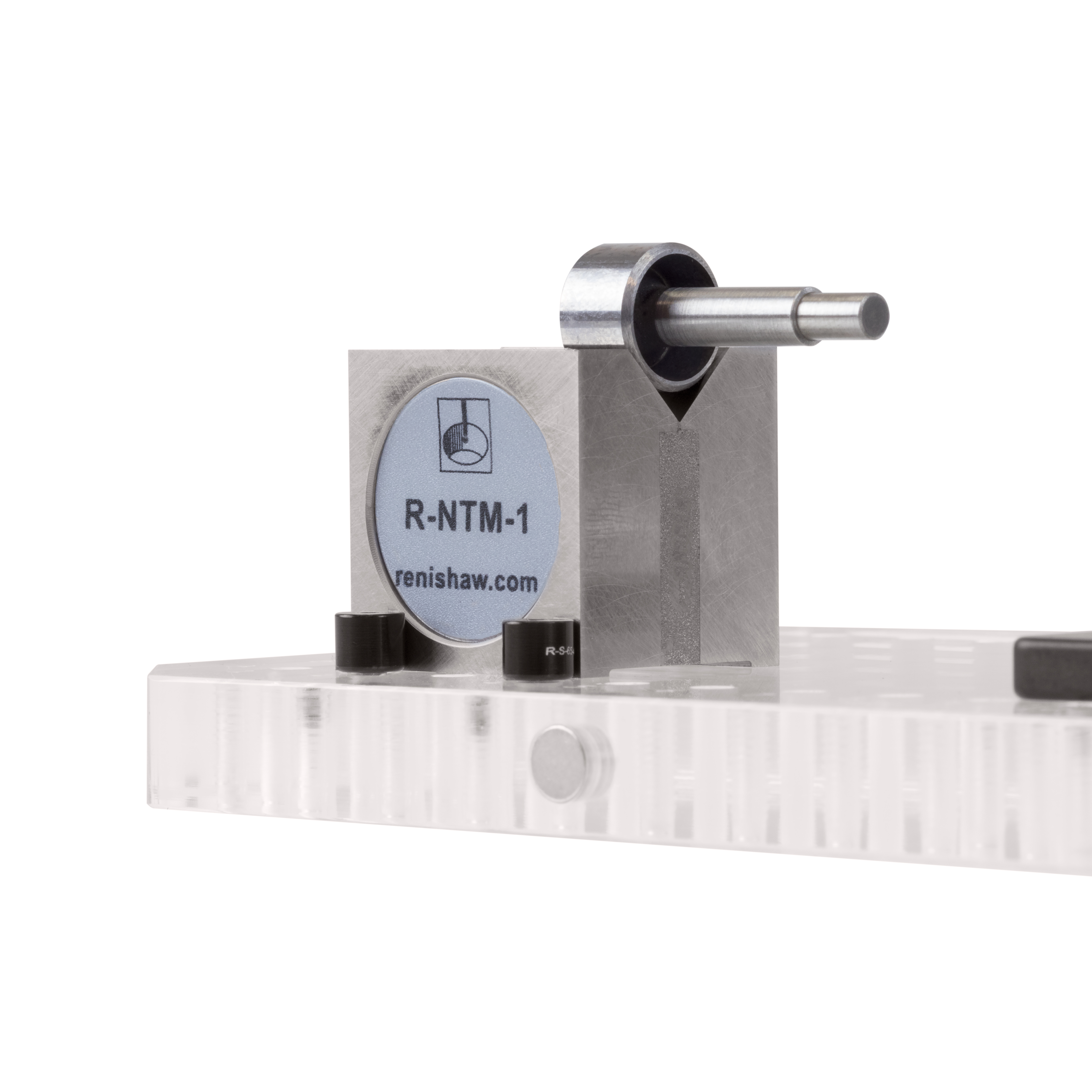

Magnetic mini v block application image

Magnetic mini v block application image
[6000 x 6000] [3.2MB]
Magnetic mini v block application image

Magnetic mini v block application image
[6000 x 6000] [4.5MB]
Magnetic mini v block application image

Magnetic mini v block application image
[6000 x 6000] [3.5MB]
Steel part held with V magnets

Fixturing example showing a steel part held with V magnets.
[476 x 389] [51kB]

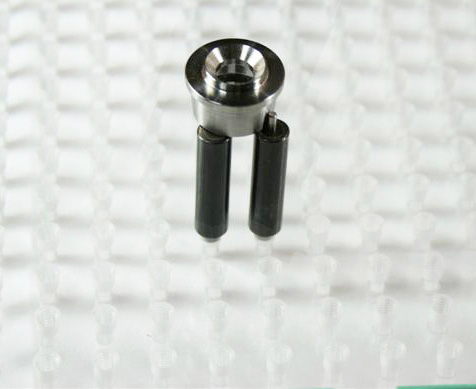

Steel part held with pin magnets and a standoff

Fixturing example showing a steel part held with pin magnets and a standoff.
[410 x 414] [37kB]

Примеры модульных приспособлений с колоннами

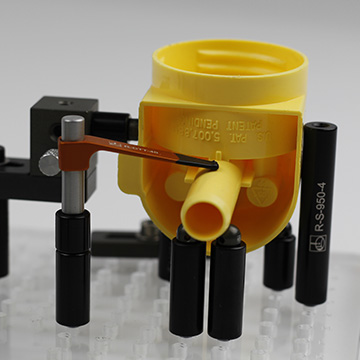

20 mm² x 80 mm tower with M4 thread with spring pusher standoff clamp and wedge stop

20 mm² x 80 mm tower with M4 thread with spring pusher standoff clamp and wedge stop
[6000 x 6000] [1.1MB]
Tower application image with M4 thread with spring pusher standoff clamp and wedge stop

20 mm² x 80 mm tower application image with M4 thread with spring pusher standoff clamp and wedge stop
[6000 x 6000] [1.4MB]
Tower with M4 threads with spring pusher standoff clamp and wedge stop

20 mm² x 80 mm tower with M4 threads with spring pusher standoff clamp and wedge stop
[6000 x 6000] [3.1MB]
Fixturing example on an acrylic plate showing a tower block with base

Fixturing example for ecommerce.
[600 x 474] [71kB]
Metal part held using Micro vise clamp with base and Tower block

Metal part held using Micro vise clamp with base and Tower block
[800 x 800] [108kB]
Plastic part being held using a micro vise clamp with base and tower block

Fixturing example showing a plastic part being held using a micro vise clamp with base, and a tower block.
[800 x 800] [217kB]

Примеры модульных приспособлений прочих типов

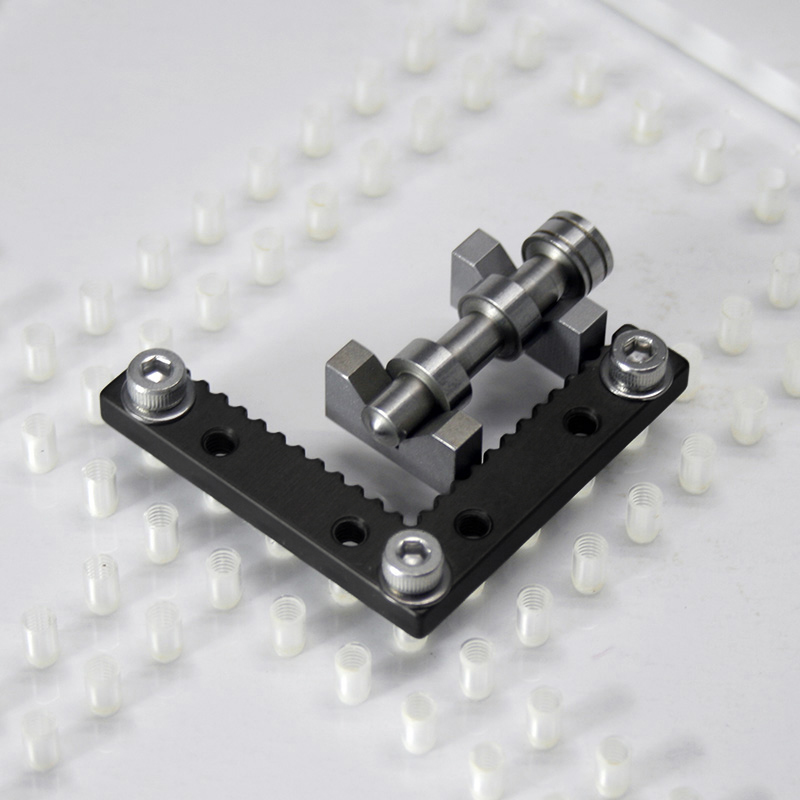

Application image for the micro V block
Fixturing example using a micro V block.
[800 x 800][193kB]
Fixturing example using a micro V block
Fixturing example using a micro V block, for holding cylindrical parts.
[800 x 800][109kB]

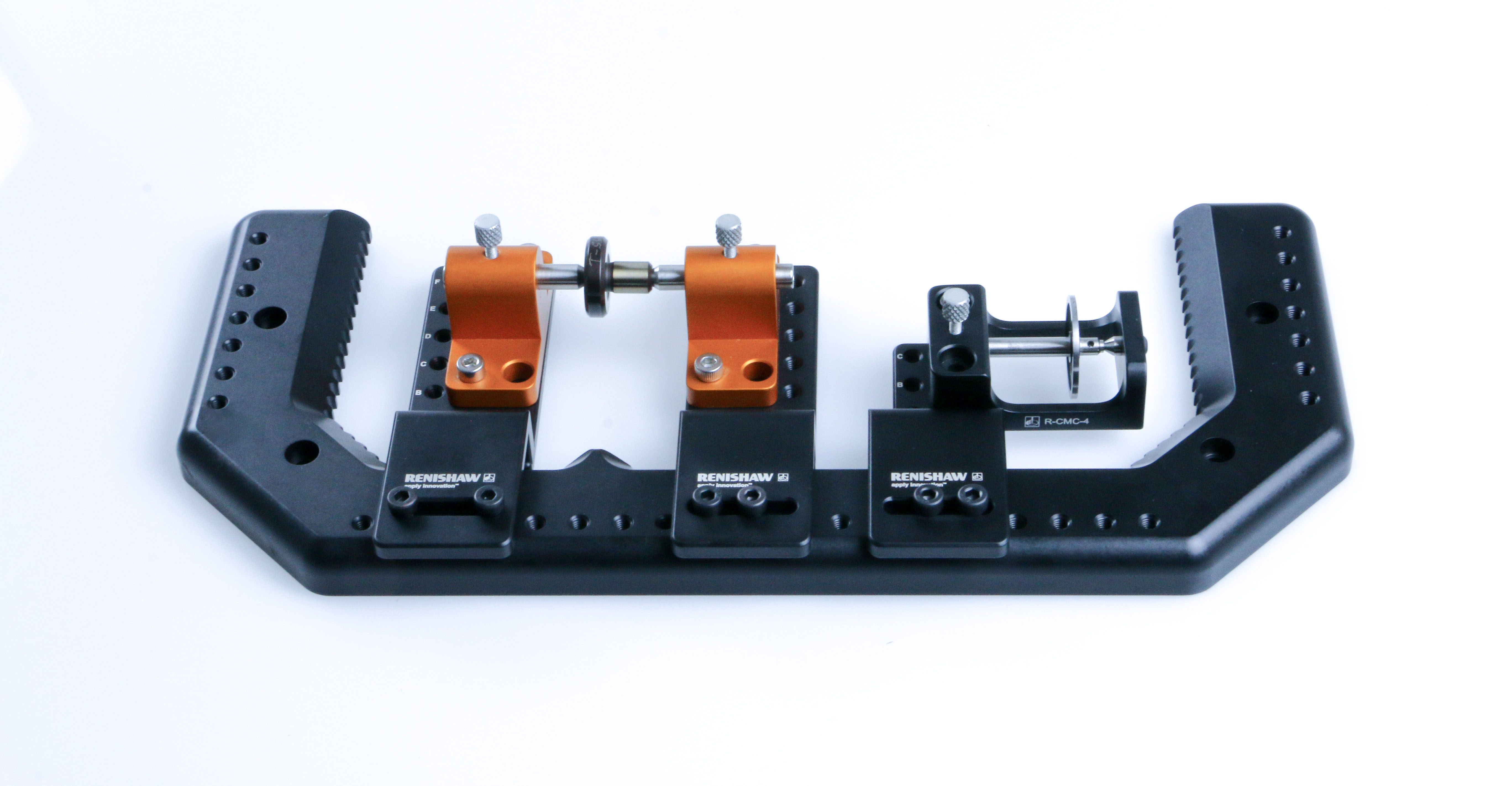

Keyence fixturing application image with quick slide plates
Keyence fixturing application image with quick slide plates and centre clamps
[5472 x 2844][882kB]

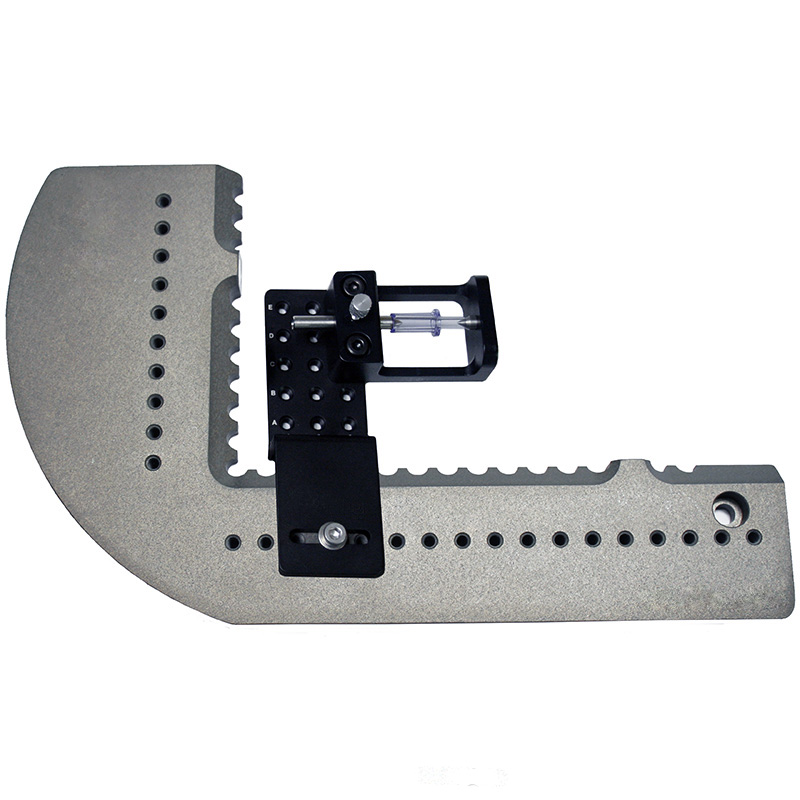

109mm quick slide plate for use with M4 fixturing components
Quick slide plate with Quick Load Corner (QLC).
[800 x 800][131kB]
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with
Metal part held with Micro sliding pusher clamp; plastic part held with Resting pins & Spring pusher standoff clamps on a multi hole vision plate with QLC
[800 x 800][121kB]

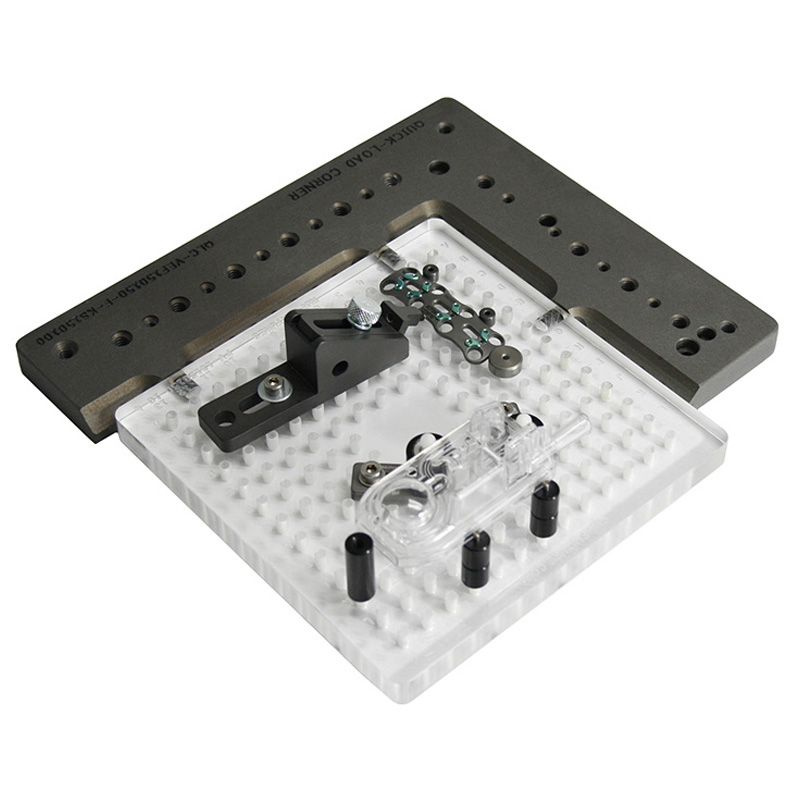

Multiple part set up on quick load corner
Image of multiple parts set up on Renishaw vision fixturing, using an acrylic base plate with quick load corner frame.
[3936 x 2665][1.9MB]
Компоновка деталей на крепёжном приспособлении quick load corner
No description available
[3465 x 2283][1.9MB]

А вы знали?

Конструкторы Renishaw могут разработать крепежные приспособления по индивидуальному заказу. Мы можем предложить вам индивидуальное решение для системы СТЗ, включая угольники QuickLoad™ (QLC) или взаимозаменяемые приспособления для СТЗ, в зависимости от вашей потребности, будь то повышение производительности за счет измерения нескольких деталей за раз, или возможность измерения труднодоступных элементов с помощью нашего модульного оборудования.

Заполните форму заявки на изготовление по индивидуальному заказу или свяжитесь с нами, используя ссылки, указанные в пункте «Следующий шаг».

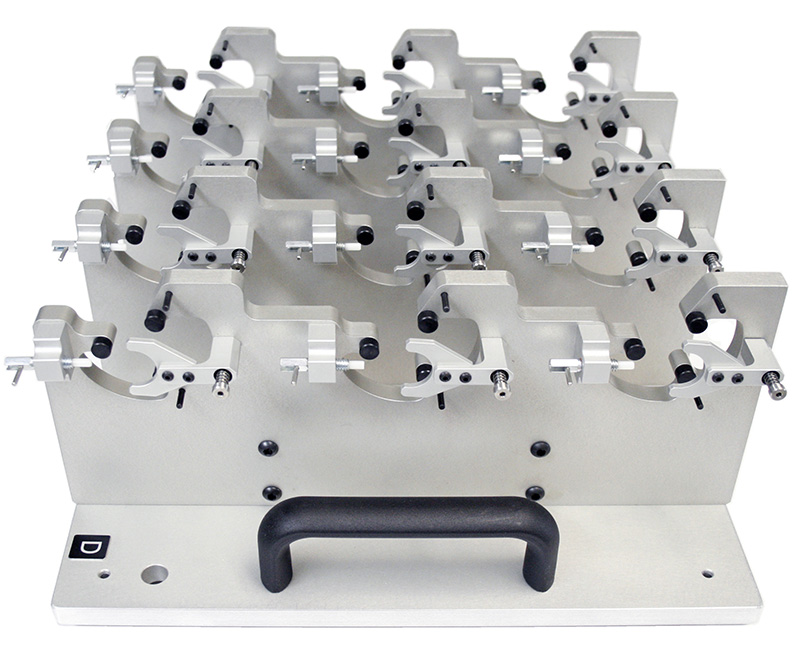

Custom vision fixture to hold 12 parts [gen]

Custom vision fixture to hold 12 parts

Custom vision fixturing example
[800 x 654] [156kB]
