Raman spectroscopy in more detail

For a more basic introduction to Raman spectroscopy see Basic overview of Raman spectroscopy.

Raman spectroscopy reveals the chemical and structural composition of samples. Generally, all materials produce Raman spectra, with the exception of pure metals.

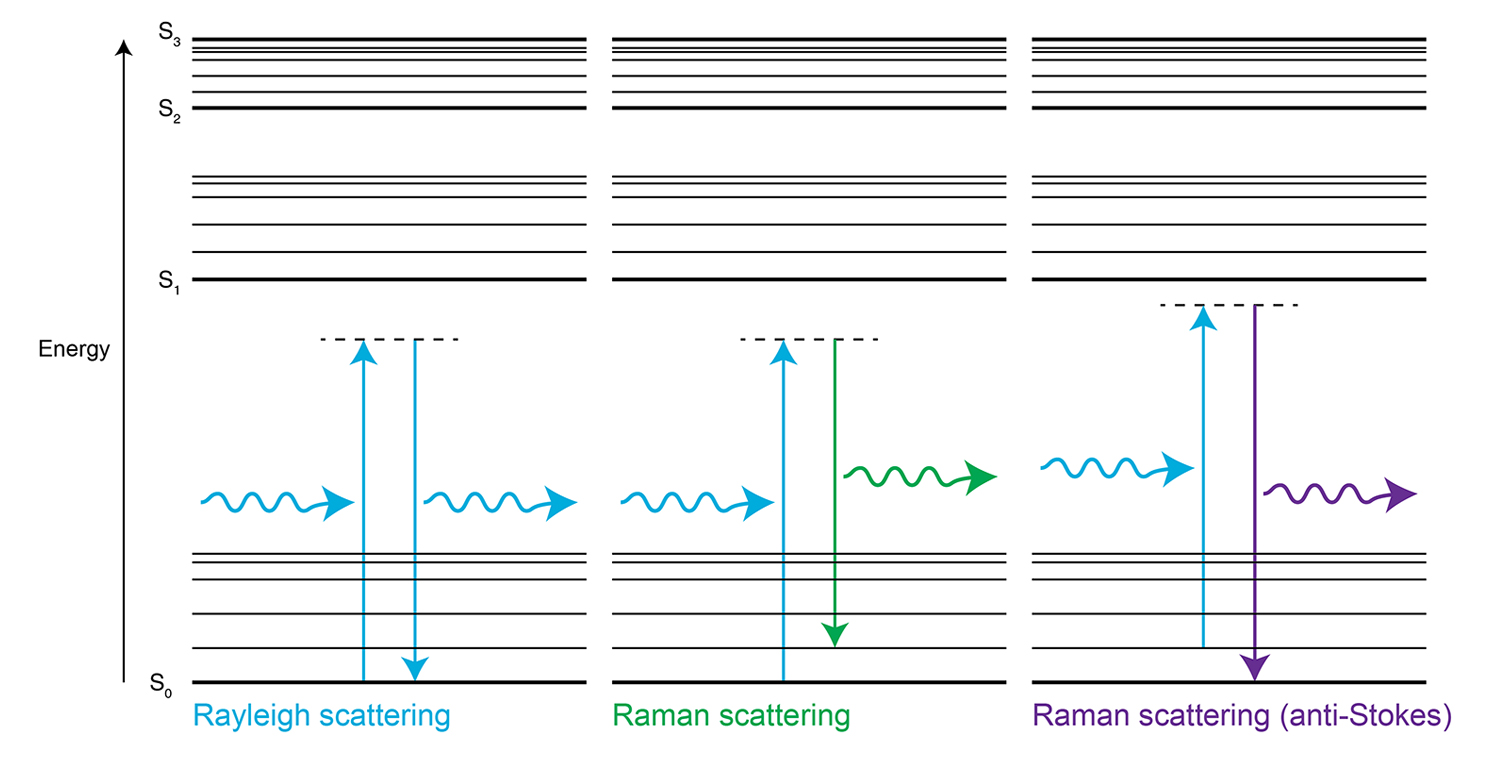

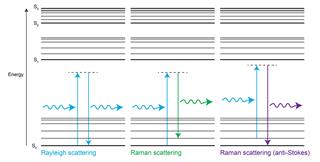

Raman scattering

Raman scattering occurs when light interacts with molecular vibrations. This is similar to the more widely known infrared absorption spectroscopy, but different rules apply. A change in molecular polarisability is required during the vibration for the Raman effect to occur.

You will see some vibrations in the Raman spectrum that are not visible in the infrared spectrum, and vice-versa, because of the different selection rules. For example, Raman spectroscopy is superb for studying the carbon atoms that make up the structure of diamond, unlike infrared absorption spectroscopy.

Vibrating atoms

The change in energy depends on the frequency of vibration of the molecule. If it is very fast (high frequency)—light atoms held together with strong bonds—the energy change is significant. If it is very slow (low frequency)—heavy atoms held together with weak bonds—the energy change is small.

Raman spectrometers

Renishaw inVia systems consist of:

• single or multiple lasers, from UV (244 nm) to IR (1064 nm) – switch with a single click
• high quality objective lenses, from high confocal 100× to long working distance and immersion options
• custom designed motorised spectrometer lenses­ - automatically align for each configuration
• laser-line-specific Rayleigh filters with a dual filter arrangement to optimise sensitivity
• highest quality master diffraction gratings provide exceptional dispersion and longevity
• thermoelectrically cooled (- 70 ºC) CCD detector – stable and sensitive
• high specification multi-core PC for data collection and analysis
