Aligning the KM80, KM6080 or SM80 for use with the SCP80(V)
To ensure satisfactory operation with both SCP80 and SCP80V during the change cycle, the KM80, KM6080 quill adaptor plate or SM80 shank mount must be aligned to the CMM axes within the limits shown.

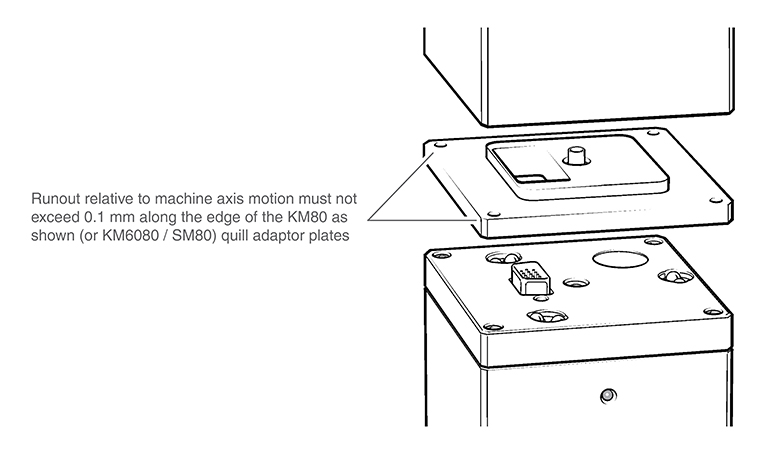

Aligning the KM80 with the CMM axes:
