A4A0H15A20F Key Features / Benefits:
- A4A0H15A20F has a resolution of 50 nm
- A4A0H15A20F is compatible with RTLF40 and RKLF40 linear tape scales
- A4A0H15A20F is supplied with a 1.5 m cable terminated by a 9-way D-type connector
- A4A0H15A20F features a bi-directionally repeatable, customer selectable reference mark and an integrated 3-state alarm for enhanced safety
- A4A0H15A20F requires a controller input frequency of at least 20 MHz
About the ATOM DX series of miniature digital encoders:
- Miniature, all-in-one, digital output optical encoder with resolutions down to 2.5 nm
- ATOM DX readheads combine Renishaw's market proven filtering optics, dynamic signal control and advanced interpolation technology. This provides low SDE, excellent dirt immunity, and eliminates the need for separate interfaces
- Integral set-up LED for simple installation and calibration
- An optional Advanced Diagnostic Tool ADTi-100 (A-6195-0100) is available for real‑time encoder data feedback during installation or for in-field diagnostics
- Available in two variants; cabled and top exit, for the most demanding space constrained installations

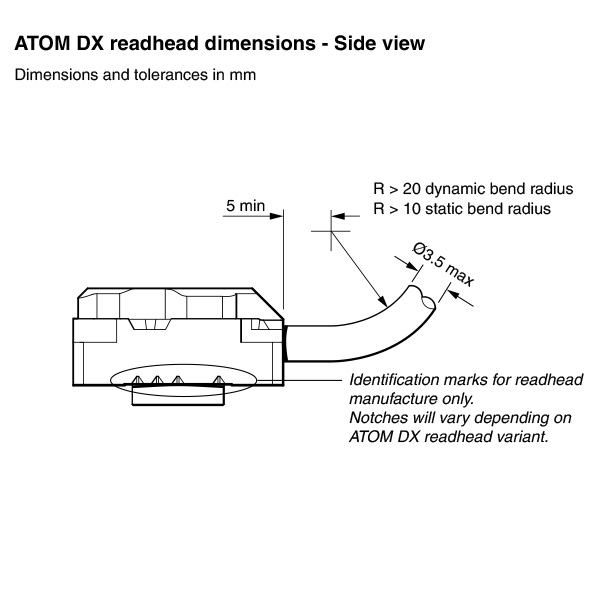

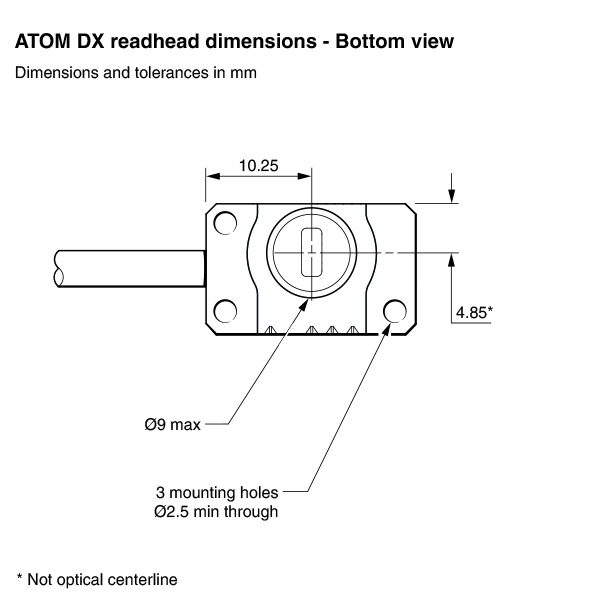

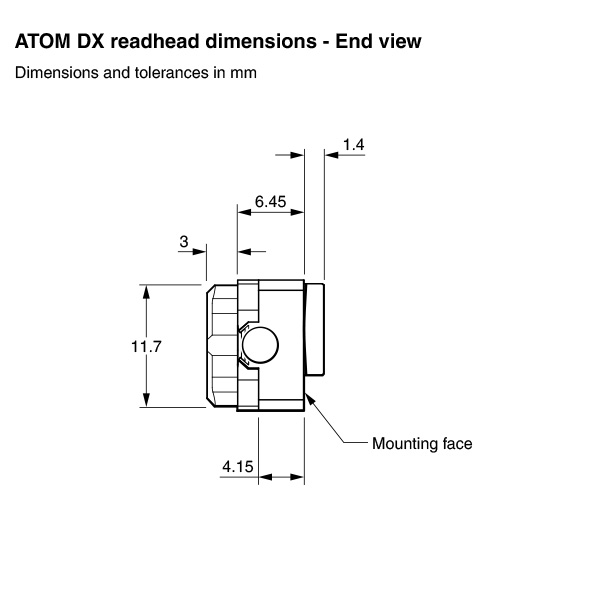

- A CAD model of the ATOM DX readhead is available from the Renishaw website
Compatible scales:
RTLF40-S, RTLF40H-S, RKLF40-S or RKLF40H-S (all self-adhesive mounting)
Available online:
A-6769-0100 RKLF40-S (1 m)
A-6769-0050 RKLF40-S (0.5 m)
A-6771-0100 RKLF40H-S (1 m)
A-6771-0050 RKLF40H-S (0.5 m)
A-9407-0100 RTLF40-S (1 m)
A-9407-0050 RTLF40-S (0.5 m)
A-9408-0100 RTLF40H-S (1 m)
A-9408-0050 RTLF40H-S (0.5 m)
