Y-cable adaptor kit
Technical specifications
Part numbers
The Y-cable adaptor kit was introduced to enable the use of a single high-speed communications cable with REVO

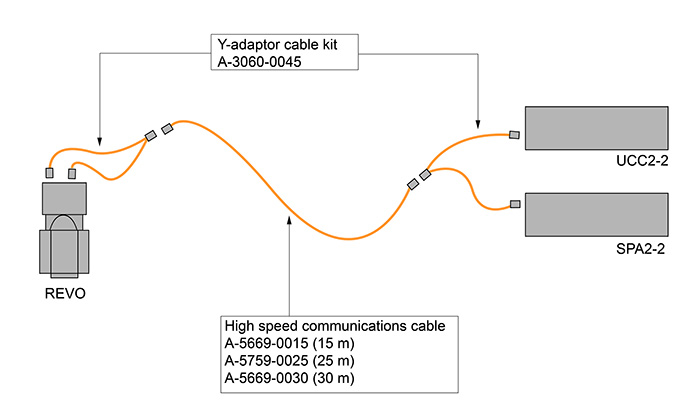

Previously it was necessary to install two cables to connect between the REVO head and the UCC2-2 and SPA2-2- The Y-cable adaptor kit contains two components (shown below), that connect to each end of the high speed communications cable
High speed communications cable
- The high speed communications cable provides a single, high quality connection for the purpose of carrying the high data rates required by 5-axis systems
- To provide greater integrity communications, the maximum recommended cable lengths are:
- PH20 installations - 25 m
