RL26BBT050B30F Key Features / Benefits:
- RL26BBT050B30F is suitable for RTLA30 scale lengths up to 3.355 m and is IP64 sealed for high reliability in harsh environments
- RL26BBT050B30F, when used with RTLA30 scale, is compatible with FASTRACK carrier system for low hysteresis applications and installations that require regular disassembly (contact your local Renishaw representative)
- RL26BBT050B30F features <10 nm RMS jitter for improved positional stability and excellent motion control

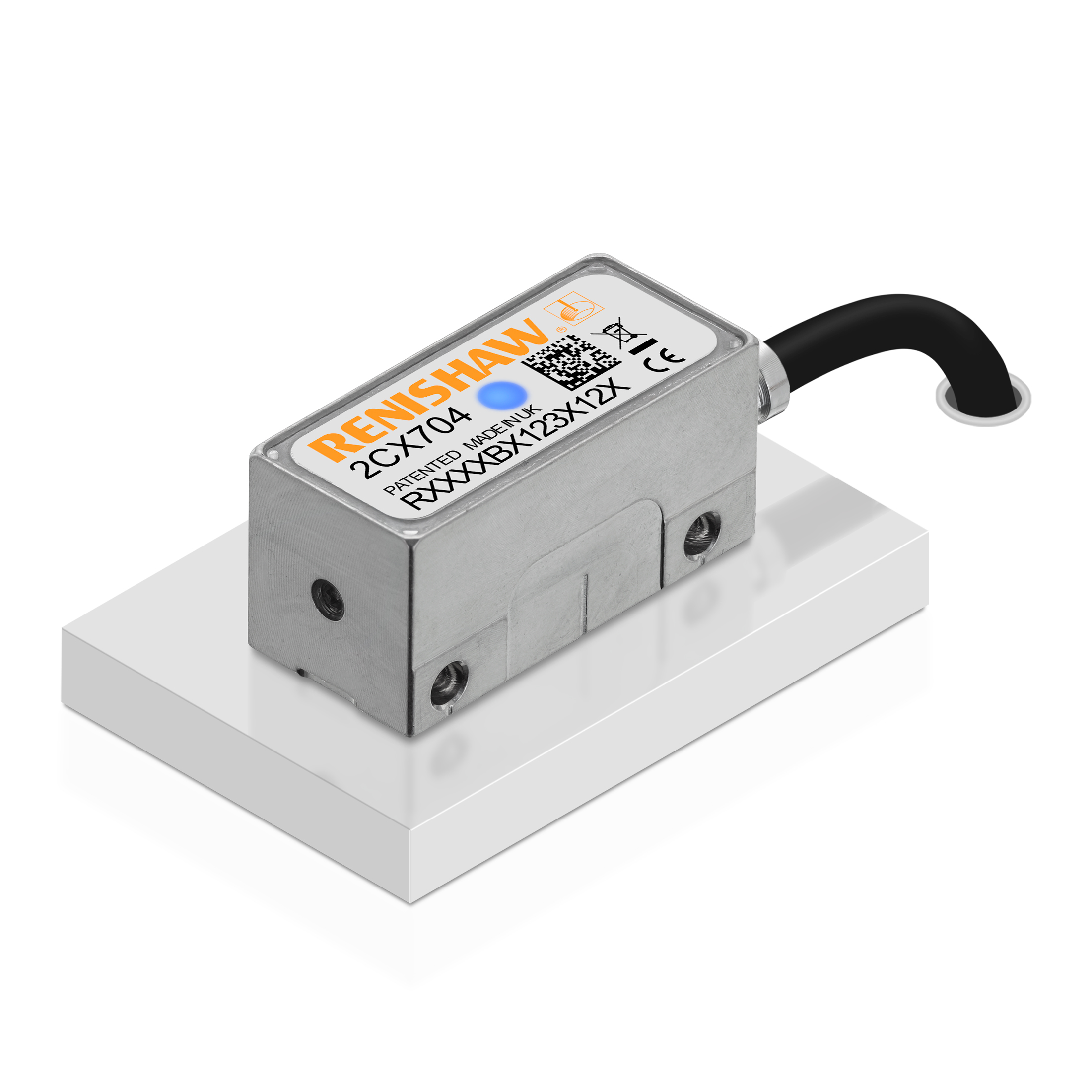

About the RESOLUTE true-absolute encoder series
- Ultra-low SDE and jitter give class-leading linear encoder performance
- Integral set-up LED for simple installation and calibration

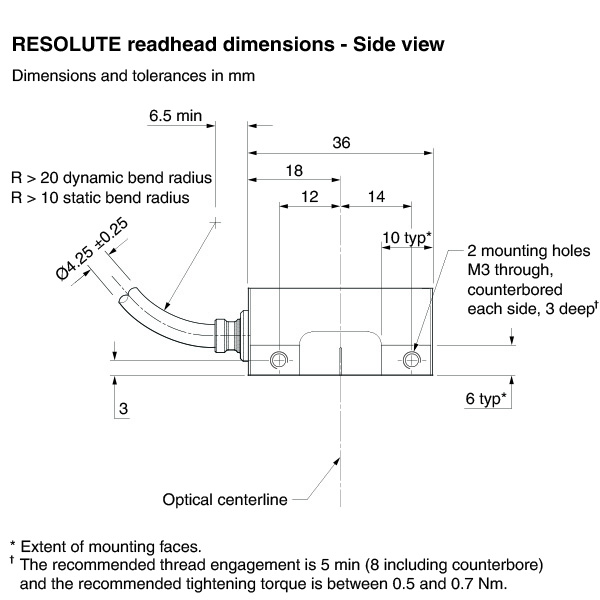

- A CAD model of the RESOLUTE readhead is available from the Renishaw website
Compatible scales:
RTLA30 (FASTRACK mounting) and/or RTLA30-S (self-adhesive mounting)
Available online:
A-9763-0100 RTLA30-S (1 m)
A-9763-0050 RTLA30-S (0.5 m)
