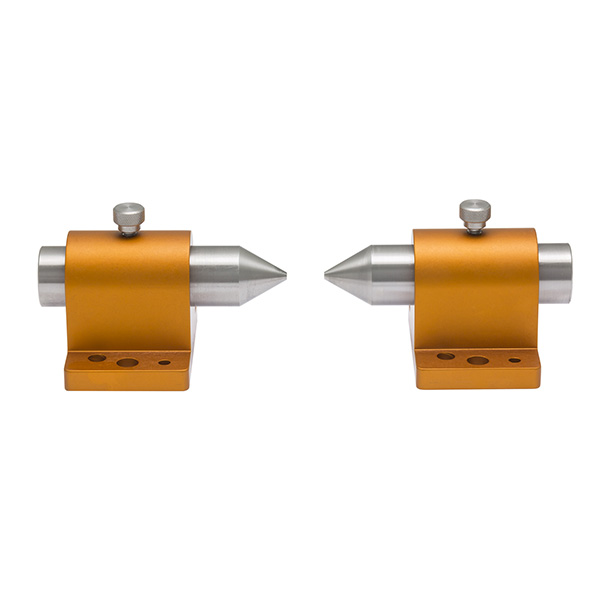

Centres with Ø25.4 mm pins for use with M4, M6, M8 and 1/4-20 fixturing components Product code: R-CC-25 Centres with Ø25 mm pins for use with M4, M6 and M8 fixturing componentsThese centres are ideal for holding cylindrical parts.[0B] Centres with Ø25 mm pins for use with M4, M6 and M8 fixturing components These centres are ideal for holding cylindrical parts. [0B] Price: $267.00 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request These centres are used for holding cylindrical workpieces at each end on their inside diameters. They are recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines. This is a universal component suitable for thread sizes M4, M6 and 1/4-20. Note: Included: both male and female centring options and socket head cap screws, delivered in pairs. Technical tableAdjustable (mm)50Fixture typeCentresHeight (mm)54.0Height (in)2.00Length (mm)76.2Length (in)3.00Measurement systemMultiplePin diameter (mm)25.4Pin height (mm)35ThreadMultipleWidth (mm)50.8Width (in)2.00 Technical documentation N-R-CC-25-A N-R-CC-25-A Web shop technical drawing [0B] Related products $236.00 Centres with Ø12.7 mm pins for use with M4, M6, M8 and 1/4-20 fixturing components $181.00 Centres with Ø6.4 mm pins for use with M4, M6 and 1/4-20 fixturing components $394.00 3-jaw chuck for use with M6, M8 and 1/4-20 base plates $283.00 Rotational 3-jaw chuck for use with M4, M6 and 1/4-20 base plates $153.00 Micro centres with Ø4.8 mm pins and M4 thread Shopping security Recall your cart
