ATOM4D0-100 Key Features / Benefits:
- ATOM4D0-100 has a 1 m hi-flex cable terminated with a 15-way D-type connector
- ATOM4D0-100 is compatible with RTLF40 and RKLF40 linear tape scales
- ATOM4D0-100 features integral set-up LED and auto-phase optical reference mark giving bi-directional repeatability over the full speed operating range (after calibration)
About the ATOM series of miniature incremental encoders:
- Miniature package; analogue output from the readhead
- Multiple interpolation options, with resolutions to 1 nm (additional separate interface required)
- Long-term stability provided by Renishaw's market proven filtering optics and dynamic signal control, ensuring low SDE and excellent dirt immunity
- Fast and simple calibration at the push of a button (on the interface)
- An optional ATOM diagnostic kit is available for real‑time encoder data feedback during installation or for in-field diagnostics (contact your local Renishaw representative)

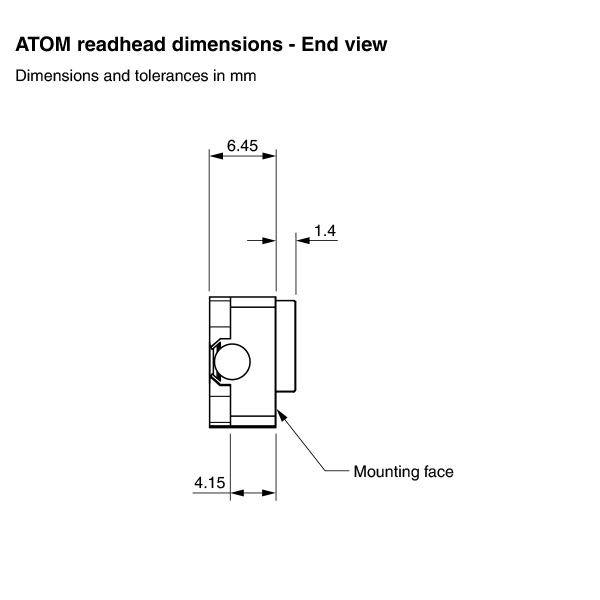

- A CAD model of the ATOM readhead is available from the Renishaw website
Compatible scales:
RTLF40-S, RTLF40H-S, RKLF40-S or RKLF40H-S (all self-adhesive mounting)
Available online:
A-6769-0100 RKLF40-S (1 m)
A-6769-0050 RKLF40-S (0.5 m)
A-6771-0100 RKLF40H-S (1 m)
A-6771-0050 RKLF40H-S (0.5 m)
A-9407-0100 RTLF40-S (1 m)
A-9407-0050 RTLF40-S (0.5 m)
A-9408-0100 RTLF40H-S (1 m)
A-9408-0050 RTLF40H-S (0.5 m)
Looking for an alternative digital output for online purchase?
