Product ATOM2D0-100, ATOM™ readhead for linear miniature encoders (analogue output, for 20 µm scales)

Product code: ATOM2D0-100

ATOM2D0-100
No description available
[0B]

ATOM2D0-100

No description available
[0B]

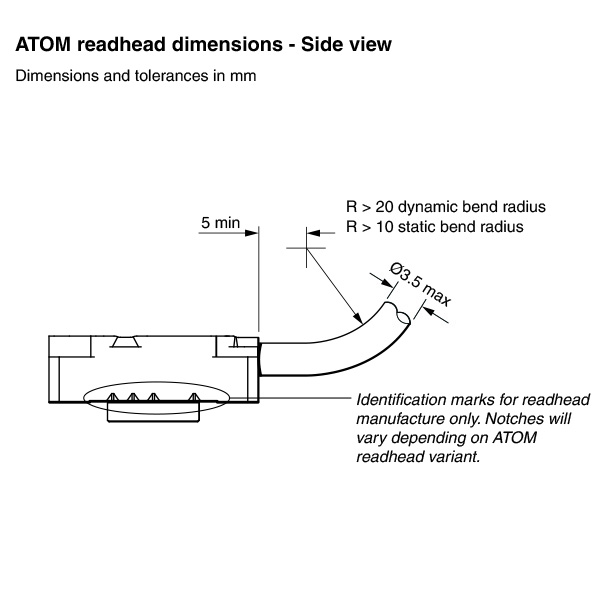

Dimension drawing of ATOM readhead - side view

Dimension drawing of ATOM readhead - side view
[0B]
Dimension drawing of ATOM readhead - top view

Dimension drawing of ATOM readhead - top view
[0B]

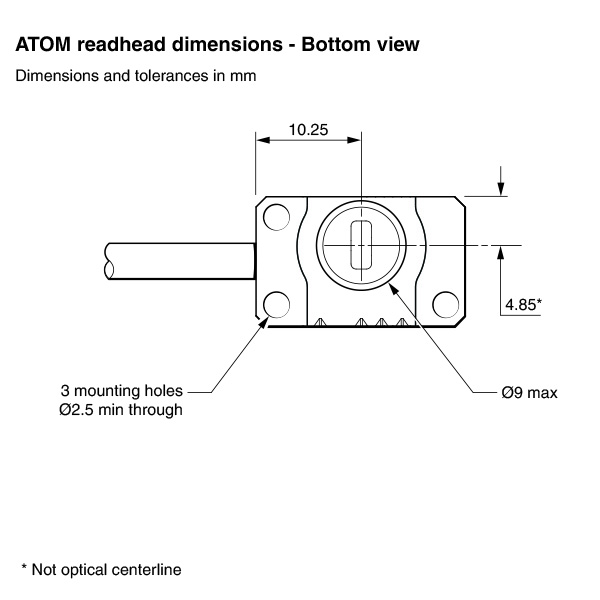

ATOM readhead dimensions - bottom view

Dimension drawing of ATOM readhead - top view
[0B]

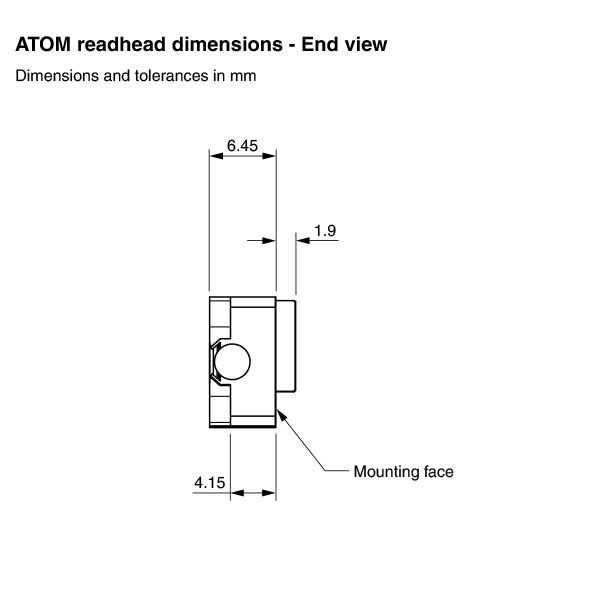

Dimension drawing of ATOM 20 μm readhead - end view

Dimension drawing of ATOM 20 μm readhead - end view
[0B]

Price: $336.00

All prices are ex sales tax

Stocked item

Normally dispatched within 2 working days

ATOM is Renishaw’s first miniature encoder with filtering optics, providing improvements in dirt immunity, signal stability and reliability.

ATOM2D0-100 is a miniature incremental encoder readhead with a 1 m cable length. Compatible with RTLF20-S and RKLF20-S linear tape scales.

RKLF20-S scales are suitable for substrate mastered applications where the scale adopts the thermal expansion behaviour of the substrate for enhanced stability.

RTLF20-S is a floating scale that expands and contracts independently of the mounting substrate.

Technical table

Cable length (m)	1
Maximum speed (m/s)	10 m/s
Readhead termination	15-way D-type connector
Readhead type	Incremental analogue 1 Vpp
Resolution (µm)	20
Scale pitch (µm)	20
Sub-divisional error	<±75 nm typical

Technical documentation

ATOM linear encoder system

ATOM linear encoder system

No description available
[0B]
ATOM miniature encoder system

ATOM miniature encoder system

ATOM is the world’s first miniature encoder with filtering optics, providing improvements in dirt immunity, signal stability and reliability for linear and rotary applications.
[0B]

ATOM2D0-100 Key Features / Benefits:

ATOM2D0-100 has a 1 m hi-flex cable terminated with a 15-way D-type connector

ATOM2D0-100 is compatible with RTLF20-S and RKLF20-S linear tape scales

ATOM2D0-100 features integral set-up LED and auto-phase optical reference mark giving bi-directional repeatability over the full speed operating range (after calibration)

About the ATOM series of miniature incremental encoders:

Miniature package; analogue output from the readhead

Multiple interpolation options, with resolutions to 1 nm (additional separate interface required)

Long-term stability provided by Renishaw's market proven filtering optics and dynamic signal control, ensuring low SDE and excellent dirt immunity

Fast and simple calibration at the push of a button (on the interface)

An optional ATOM diagnostic kit is available for real‑time encoder data feedback during installation or for in-field diagnostics (contact your local Renishaw representative)
