UCC T3 PLUS and UCC S3 introduction
The UCC T3 PLUS / UCC S3 are the latest generation Renishaw CMM controller products. They support the complete range of Renishaw two wire touch-trigger probes along with the high performance SP25M and SP600 (UCC S3 only) . Support for conventional contact, strain-gauge sensors (TP200), motorised probe heads, stylus changers and temperature compensation are all built into these controllers.
![CMM system component image with PH10 PLUS](/cmmsupport/knowledgebase/media/img/gen/aadaa6ed781646d19a875c42489b3117.jpg)
Key | Description |
---|---|
1 | Machine motors |
2 | Machine scales and readheads |
3 | Probe head - manual or CNC (PH10 PLUS) - connects to the UCC T3 PLUS / UCC S3 via the machine cabling |
4 | UCCassist-2 commissioning software and application software |
5 | UCC T3 PLUS / UCC S3 and power amplifier SPA3-2 - these connect to the machine cabling |
6 | MCU joystick - MCUlite-2, MCU5-2 or MCU W-2 - connects to SPA3-2 |
7 | PC - connects to UCC T3 PLUS / UCC S3 via an ethernet cable |
8 | MCR20 rack |
The UCC T3 PLUS / UCC S3 is a controller in a 19 inch rack-mountable enclosure. It is coupled to the CMM host computer by an ethernet link and to the CMM via external cable interface connectors.
The UCC T3 PLUS / UCC S3 controllers in conjunction with the SPA3-2 have the capability of:
- controlling three axes of a CMM (accepting digital readhead signals and generating three axes of motor drive signals)
- accepting input signals from emergency stop, air pressure, crash detector, digital SPA, amplifier faults and all axis inner and outer travel limit switches
- accepting two uncommitted general purpose input signals and generating one uncommitted general purpose output signal via SPA3-2
- PH10 and PH10 PLUS interfacing
- directly supporting the TP1, TP2, TP6, TP20 and TP200 touch-trigger probes and SP25 and SP600 scanning probes (UCC S3 only)
- directly supporting the Renishaw TEC (16 channels) and RS232 (Mitutoyo) TEC systems
- providing a +24 V supply for use by the CMM switches
- the UCC T3 PLUS / UCC S3 supports the MCUlite-2, MCU5-2 and MCU W-2 joysticks through the SPA3-2
This guide gives information on physical installation, system connections and communications, as well as assistance in fault finding during the installation of the UCC T3 PLUS or UCC S3.
WARNING: UCC T3 PLUS / UCC S3 are not compatible with PH9, PHS, PH20 and REVO systems. No attempt should be made to connect these system components to the UCC T3 PLUS or UCC S3 as this will result in damage to the product or attached equipment.
Please use this guide in conjunction with the PH10, TP200 and SP25M user's guide in order to fully understand the system's features, capabilities and operation.
Front panels
UCC T3 PLUS
![UCC T3 PLUS front panel](/cmmsupport/knowledgebase/media/img/gen/36473de62cce453390774e56034f103b.png)
UCC S3

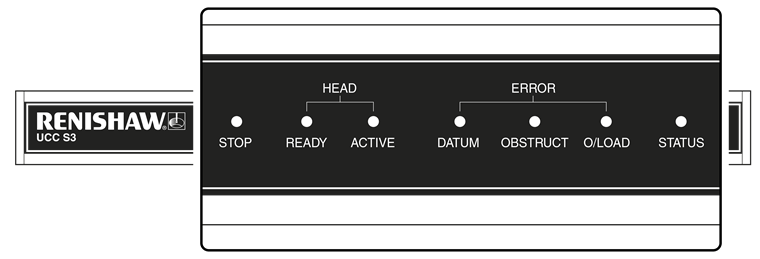

![UCC S3 front panel](/cmmsupport/knowledgebase/media/img/gen/3c3e407eabdd48378b255b0eb87fa8dc.png)

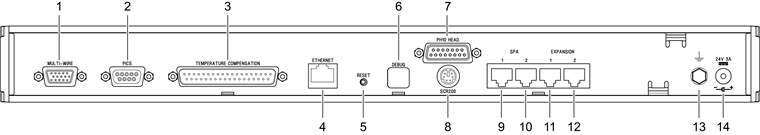

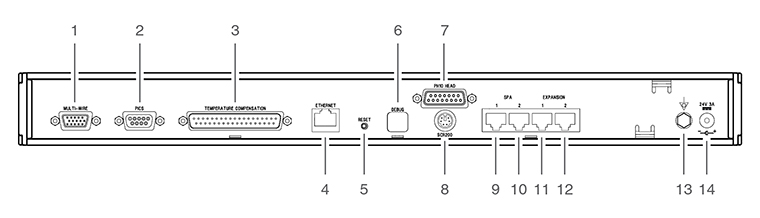

Rear panel layout
Key | Description | Connector polarity |
---|---|---|
1 | Multiwire connection | SOCKET |
2 | PICS | SOCKET |
3 | Temperature compensation connector | PLUG |
4 | Ethernet communications connector to CMM computer | SOCKET |
5 | Reset button / IP configure button | |
6 | Reserved - do not connect | |
7 | PH10 head connector | SOCKET |
8 | SCR200 rack input (TP200) | SOCKET |
9 | RJ45 connector to SPA3-2 | SOCKET |
10 | RJ45 connector to second SPA3-2 | SOCKET |
11 | Reserved | |
12 | Reserved | |
13 | Equipotential bond point | BOLT |
14 | DC power jack 24 V | SOCKET |
