PHS-2 servo positioning head

Servo positioning 2-axis motorised head with ±184° servo drive enabling the probe configuration to be positioned at almost any angle

The PHS-2 servo positioning head features continuous servo drive in two axes, enabling the probe configuration to be positioned at almost any angle
The PHS-2 head is not locked into position in the same way as a PH10 PLUS indexing head. Instead it is driven to the required position and, when a probing point is taken, the axes of the head latch simultaneously with the axes of the CMM to give accurate measurements
A range of different probes can be fitted and automatically exchanged. These include touch-trigger probes and third-party laser / optical sensors

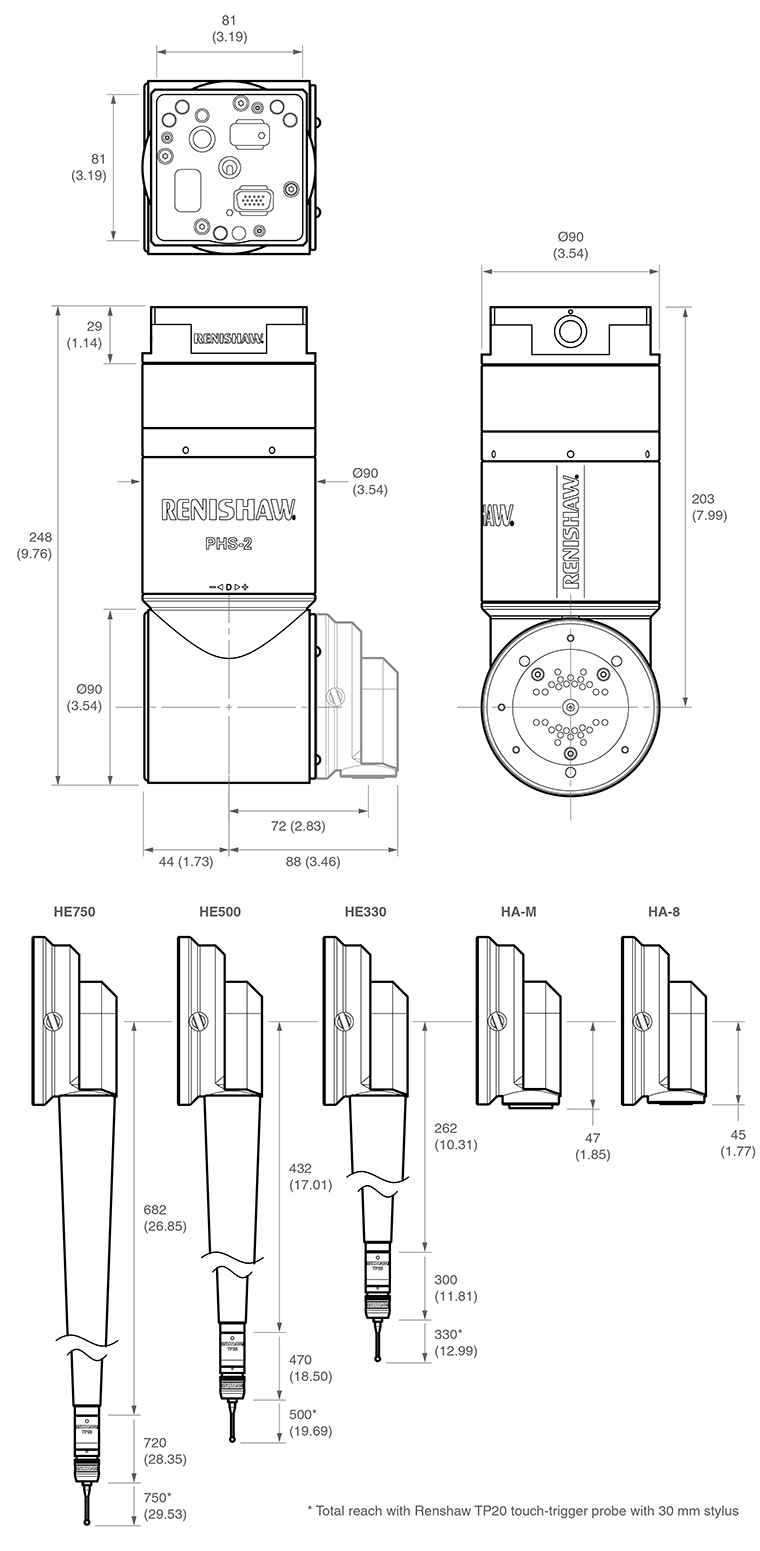

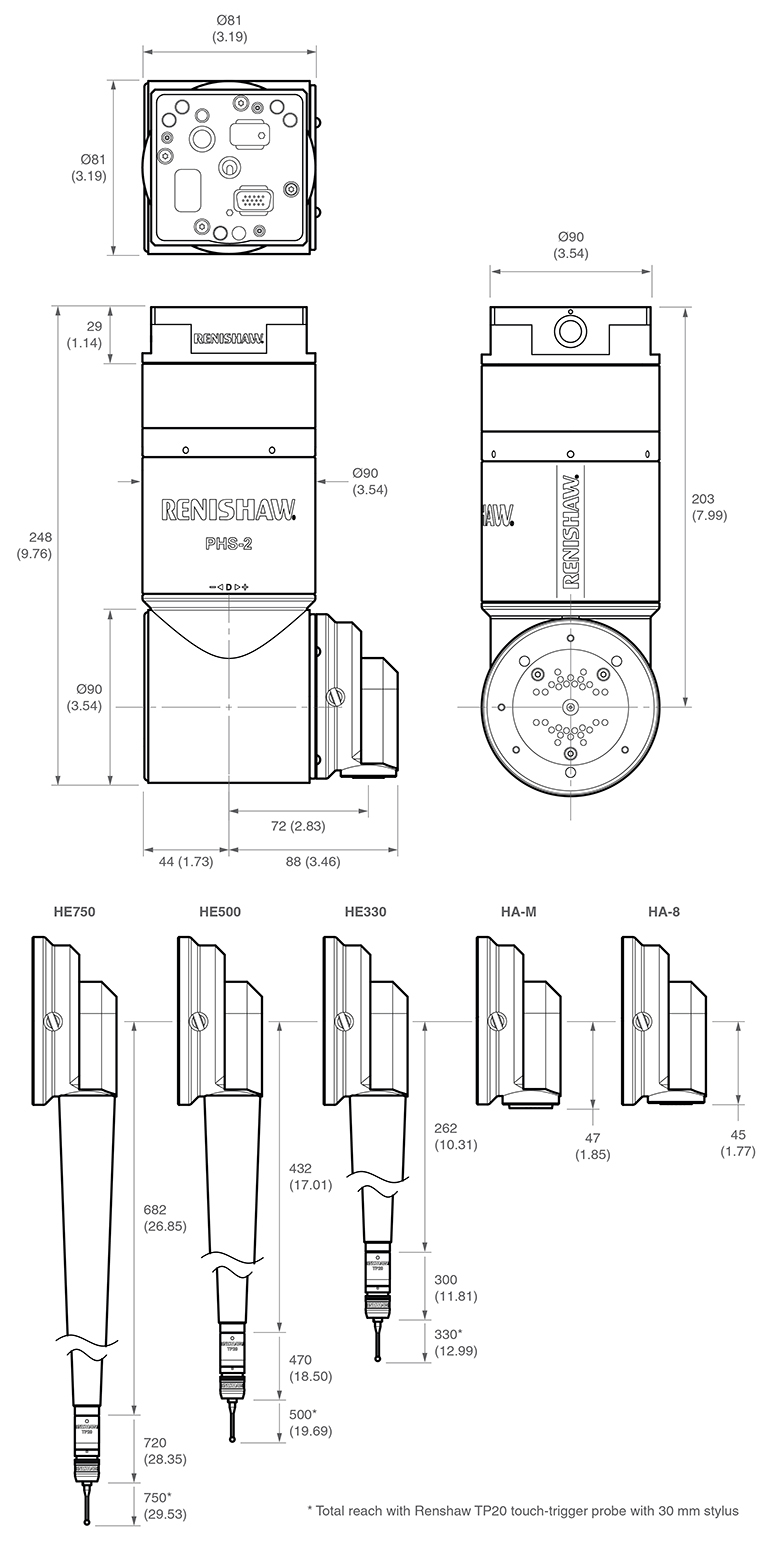

Operating temperature	15 °C to 40 °C (50 °F to 104 °F)
Weight	3 kg (6.6 lb)
Carry capability	Combined probe and extension mass of 1 kg (2.2 lb)
Maximum torque	2 Nm
Mechanical clutch slip	3 Nm ±0.5 Nm
Movement speed	120 °/s maximum, 70 °/s typical
Arm rotation angle	D-axis: ±184° E-axis: ±184°
Angular resolution	0.2 arc second (equivalent to 0.1 µm at 100 mm radius)
Collision protection	Electronic over torque
Suitable head interface	PHS-2 interface card / OEM controller
Changer rack system	ACR2

Installation & user's guide: PHS-2
Installation & user's guide: PHS-2
PHS-2 is designed to meet the arduous requirements of 'body-in-white' measurement, where fine angular position and long reach are needed.
[3.2MB]

	Part number
PHS-2 head kit 1 (including PHS-2 head, 3 × ACR2 port pair, 2 × HAM, 2 × HA8, HE500, HE750)	A-5795-0817
PHS-2 head kit 2 (including PHS-2 head, 2 × ACR2 port pair, KM1, HAM, HA8, HE330, HE500)	A-5795-0819
PHS-2 head only	A-5795-0001

	Part number
PHS-2 arm kit 1 (2 × HAM, 2 × HA8, HE500, HE750)	A-5795-0816
PHS-2 arm kit 2 (HAM, HA8, HE330, HE500)	A-5795-0827
HE750 extended arm PHS1 or PHS-2	A-5795-1060
HE500 extended arm PHS1 or PHS-2	A-5795-1050
HE330 extended arm PHS1 or PHS-2	A-5795-1040
HAM PHS multiwire adapter for PHS1 or PHS-2	A-5795-1010
HA8 PHS M8 adapter PHS1 or PHS-2	A-5795-1030
PHS extension bar wooden box	A-2150-0191

	Part number
ACR2 port pair for use with PHS1 or PHS-2	A-1383-0003

	Part number
PHS1 or PHS-2 interface card kit	A-2150-0824

	Part number
KM1 – kinematic (through quill cabling) for use with PHS1 / PHS2	A-2150-0831
KM2 – kinematic (around quill cabling) for use with PHS-2	A-2150-0832
PL104 – 30 m power cable	A-2150-0481
PL105 – 30 m comms cable	A-2150-0482
PL106 – 30 m probe cable	A-2150-0483
PL107 – 30 m overtravel cable	A-2150-0484
PHS1 / PHS-2 positronic connector kit	A-2150-0836
