Fitting the RSP3 ports and FCR25 to the MRS2 rail

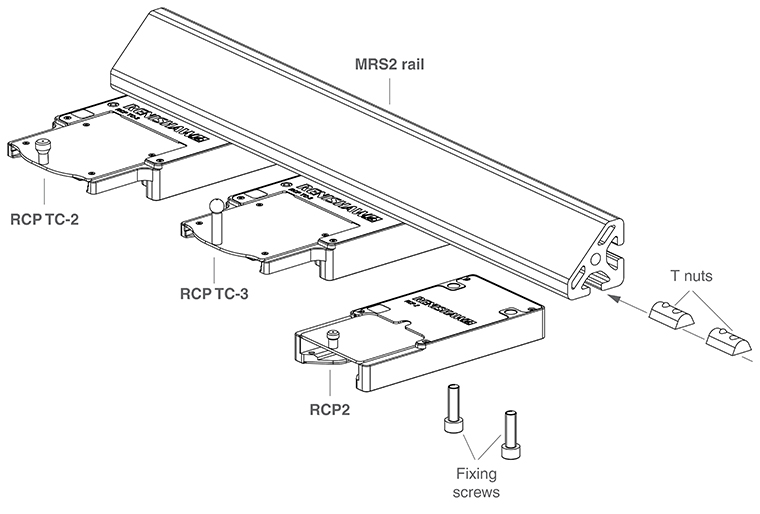

Stylus holder changing for RSP3 probes can be done by using the RCP TC-2, RCP TC-3, RCP2 and FCR25 ports. These need to be attached to the MRS2 rail using the procedure below. The MPS1 spacer should be used to position the RCP TC-3 port storing RSP3-6, and its adjacent ports.
NOTE: Please refer to the REVO-2 change port system spacing guide (Renishaw part number H-1000-5408) for full details of the recommended spacing for positioning all sensors and artefacts on the MRS / MRS2 rail.
Please refer to the MRS2 modular rack system installation guide (Renishaw part number H-1000-5255) for full MRS2 installation details.
NOTE: To use the FCR25 rack with REVO the stand off plate must be fitted between the FCR25 and MRS2 rails.
