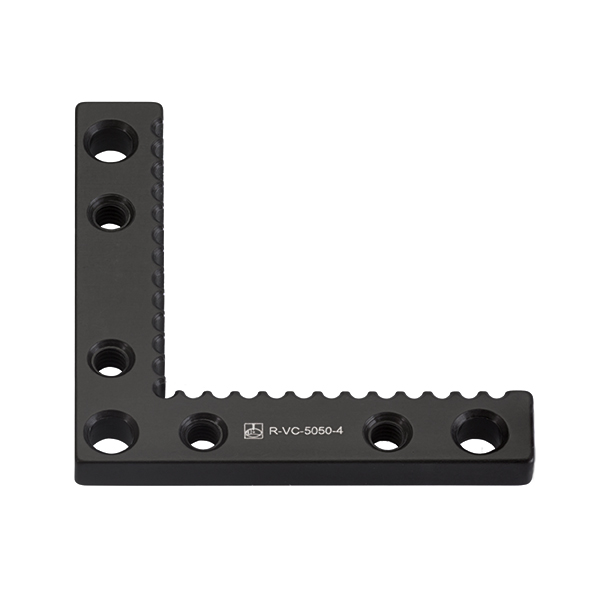

50.0 mm x 50.0 mm corner viewer with M4 thread Product code: R-VC-5050-4 50 mm x 50 mm corner viewer with M4 threadThis corner viewer is used to locate a part in a corner.[0B] 50 mm x 50 mm corner viewer with M4 thread This corner viewer is used to locate a part in a corner. [0B] Fixturing example on an acrylic plate using a tension clamp and pusher clamp Fixturing example on an acrylic plate. [0B] Price: $50.75 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request This corner viewer is used to locate a workpiece in a corner. The serrations allow backlighting along the sides of the workpiece. It is recommended for use on vision and multi-sensor machines.Note: Included: socket head cap screws. Technical tableFixture typeCorner ViewerHeight (mm)5.0Length (mm)50.0MaterialAluminiumMeasurement systemMetricThickness (mm)10ThreadM4Width (mm)50.0 Technical documentation R-VC-5050-4 R-VC-5050-4 Technical Drawing for R-VC-5050-4 for use on the Web shop [0B] Related products $57.75 82.6 mm x 82.6 mm corner viewer with M6 thread Shopping security Recall your cart
