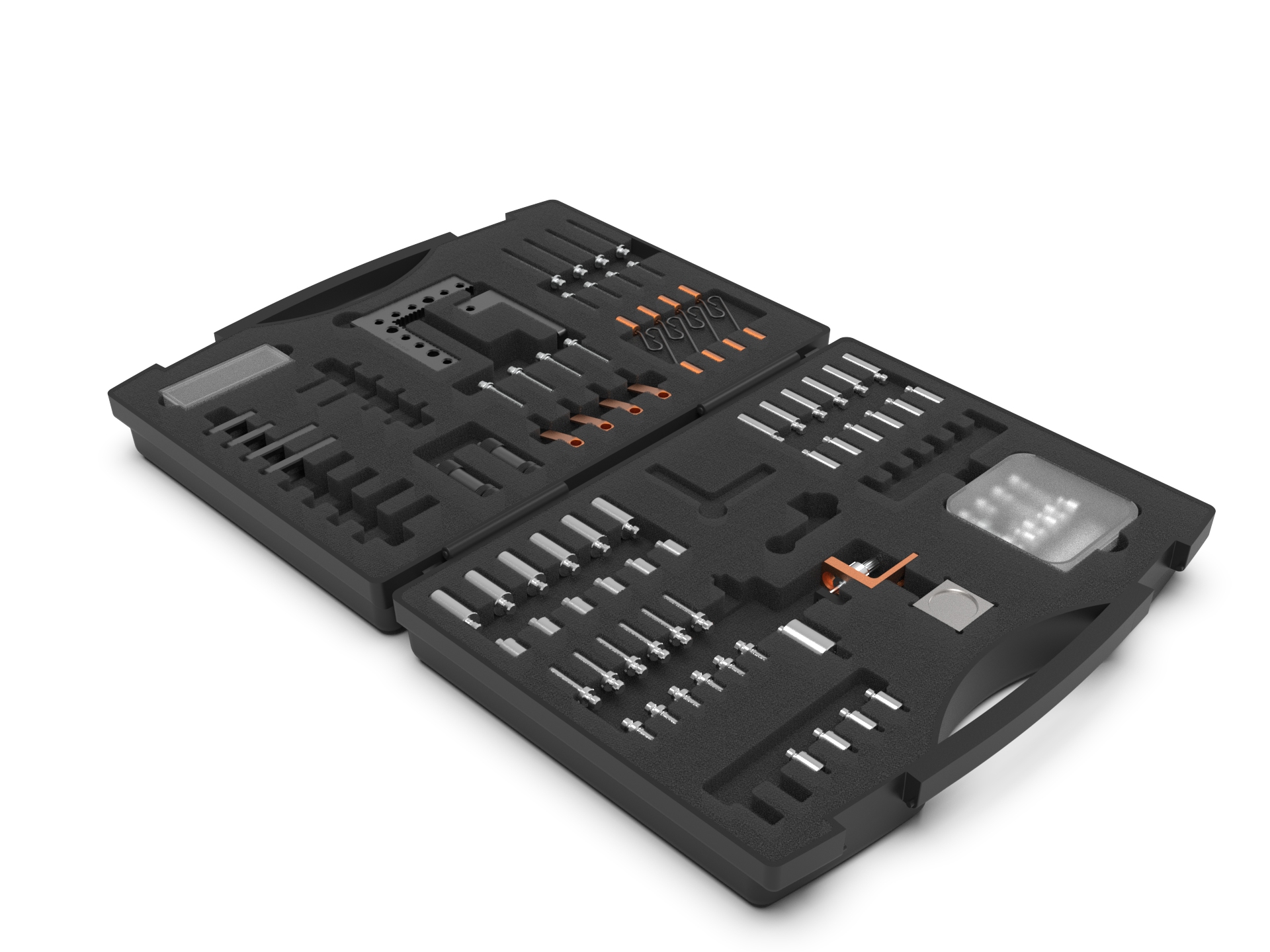

1/4-20 intermediate vision set Product code: R-V-SET-INT-20 Metrology fixture vision intermediate setMetrology fixture vision intermediate set image for use on the Online store for the following kits: R-V-SET-INT-6, R-V-SET-INT-20[0B] Metrology fixture vision intermediate set Metrology fixture vision intermediate set image for use on the Online store for the following kits: R-V-SET-INT-6, R-V-SET-INT-20 [0B] Price: $2,000.00 All prices are ex sales tax Limited AvailabilityLonger lead times may apply.Contact us for more information. Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request Renishaw component sets allow you to start fixturing quickly and easily. Our sets have carefully considered fixturing components for creating repeatable, fast, and precise modular fixtures. As with our fixturing plates and metrology tables, component sets come in standard thread sizes of M4, M6, M8 and 1/4-20. Each fixturing component set comes in a protective carry case for safe transportation and to provide storage. Component sets are available in the following configurations: starter, basic, intermediate or professional. You can further enhance your fixturing capabilities with a magnetic and/or standoff add-on set. NOTE: Make sure that the acrylic plate and QuickLoad corner you select will fit your specific machine. Contact your local sales representative to discuss your requirements. Technical tableApplicationVisionMeasurement systemImperialThread1/4-20 Part NumberDescriptionQuantityR-S-2550-200.25 in diameter × 0.50 in standoff6R-S-251-200.25 in diameter × 1.00 in standoff6R-S-37525-200.375 in diameter × 0.25 in standoff6R-S-37550-20Ø0.375 in × 0.25 in standoff6R-S-37575-200.375 in diameter × 0.75 in standoff6R-S-3751-200.375 in diameter × 1.00 in standoff6R-S-5050-20Ø0.50 in × 0.50 in standoff6R-S-501-20Ø0.50 in × 1.00 in standoff6R-SP-2550-200.25 in diameter × 0.50 in pin standoff4R-SP-37550-200.375 in diameter × 0.50 in pin standoff4R-CTT-160-125-201.43 in tension clamp with 1.26 in post4R-CWT-1-1-201.23 in wire clamp with rubber-coated tip with 0.94 in post4R-CWT-2-2-201.96 in wire clamp with rubber-coated tip with 1.76 in post4R-NTM-1Magnetic V block1R-RPS-20Steel resting pin4R-VC-33-203.25 in × 3.25 in corner viewer1R-AJ-50-20Ø0.63 in adjustable aluminium jack stand2R-CP-20Pusher clamp1R-CSPS-751-200.75 in diameter × 1.00 in spring pusher standoff clamp1R-AS-1-201.38 in long adjustable slide2R-ASA-2-202.00 in long adjustable acrylic slide2R-TB-751-200.75 in × 0.75 in × 2.75 in tower block with 1/4-20 thread1 Shopping security Recall your cart
