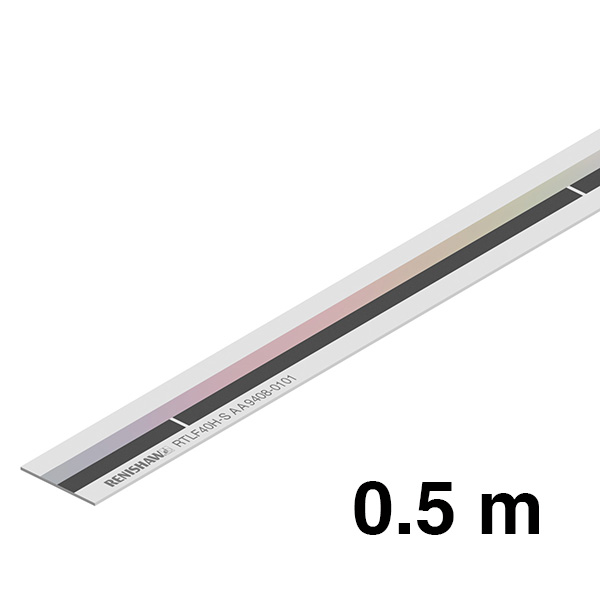

RTLF40H-S linear encoder tape scale (high accuracy 40 µm scale pitch, for ATOM™ and ATOM DX™ readheads) Product code: A-9408-0050 RTLF40H annotated 0.5 mNo description available[0B] RTLF40H annotated 0.5 m No description available [0B] Price: $231.00 All prices are ex sales tax Limited AvailabilityLonger lead times may apply.Contact us for more information. Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request A-9408-0050 is a 0.5 m (500 mm) length of RTLF40H-S incremental encoder tape scale (high accuracy version of RTLF40-S), compatible with ATOM and ATOM DX encoder readheads.RTLF40H-S is a 40 µm pitch low-profile stainless steel tape scale.RTLF40H-S is applied to the substrate with self-adhesive backing tape, which is formulated to enable the scale to expand independently of the machine substrate. To complete the installation, the scale is clamped at one point to provide a datum position. Technical tableAccuracy (± µm)5Coefficient of thermal expansion10.1 µm/m/°CMount typeSubstrate independentScale length (m)0.5Scale pitch (µm)40Scale typeIncremental Technical documentation ATOM DX™ linear encoder systems ATOM DX™ linear encoder systems No description available [0B] ATOM linear encoder system ATOM linear encoder system No description available [0B] ATOM DX™ miniature encoder system ATOM DX™ miniature encoder system The ATOM DX encoder series is Renishaw’s smallest incremental optical encoder with digital output direct from the readhead, providing positional feedback, onboard interpolation, and filtering optics all in a miniature package. [0B] ATOM miniature encoder system ATOM miniature encoder system ATOM is the world’s first miniature encoder with filtering optics, providing improvements in dirt immunity, signal stability and reliability for linear and rotary applications. [0B] RTLF40H-S Features / benefits: Quick and simple application using Renishaw's scale applicator Low-profile stainless steel tape scaleCustomer deselectable reference marks every 50 mmHigh solvent immunityCut-to-length flexibility Compatible readheads:ATOM and ATOM DX readheadsAvailable online:ATOM ATOM4D0-100ATOM DX A4L0Y00Z10FATOM DX A4A0X15A10FATOM DX A4A0Y15A10F For more details on this and other Renishaw encoder scales please visit our scales page. Related products $72.00 Side mounted applicator for RTLF self-adhesive scales with ATOM™ or ATOM DX™ encoder readheads $5.00 Reference mark deselection stickers for RTLF and RKLF encoder scales $65.00 Slim applicator for RTLF self-adhesive scales with ATOM™ or ATOM DX™ encoder readheads $21.00 IPA wipes for all encoder system installations (pack of 20) $13.00 Datum clamp for adhesive mounted RTL linear encoder tape scales $23.00 Scale end covers for RTL encoder scales $422.00 Guillotine for cutting RKL and RTL linear encoder scales $176.00 Shears for cutting RKL and RTL linear encoder scales Shopping security Recall your cart
