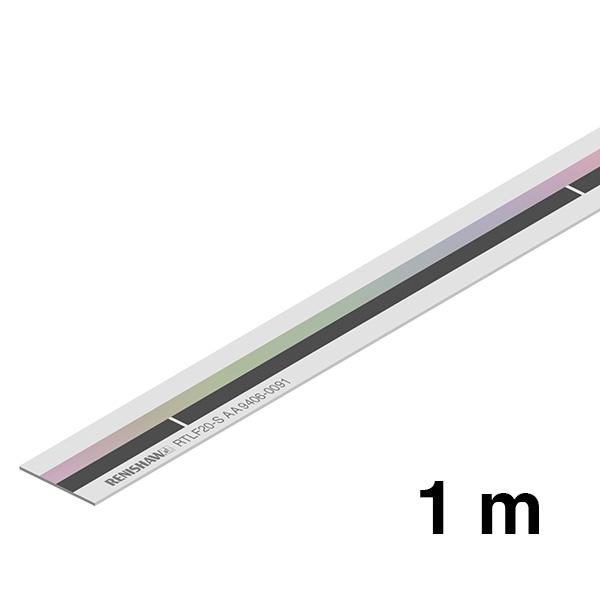

RTLF20-S linear encoder tape scale (20 µm scale pitch, for ATOM™ and ATOM DX™ readheads) Product code: A-9406-0100 RTLF20-S annotated 1 mNo description available[0B] RTLF20-S annotated 1 m No description available [0B] Price: $462.00 All prices are ex sales tax Limited AvailabilityLonger lead times may apply.Contact us for more information. Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request A-9406-0100 is a 1 m (1000 mm) length of RTLF20-S incremental encoder tape scale, compatible with ATOM and ATOM DX encoder readheads (for 20 µm ATOM DX readheads, contact your local Renishaw representative). RTLF20-S is a 20 µm pitch low-profile stainless steel tape scale.RTLF20-S is applied to the substrate with self-adhesive backing tape, which is formulated to enable the scale to expand independently of the machine substrate. To complete the installation, the scale is clamped at one point to provide a datum position. Technical tableAccuracy (± µm)5Coefficient of thermal expansion10.1 µm/m/°CMount typeSubstrate independentScale length (m)1Scale pitch (µm)20Scale typeIncremental Technical documentation ATOM DX™ linear encoder systems ATOM DX™ linear encoder systems No description available [0B] ATOM linear encoder system ATOM linear encoder system No description available [0B] ATOM DX™ miniature encoder system ATOM DX™ miniature encoder system The ATOM DX encoder series is Renishaw’s smallest incremental optical encoder with digital output direct from the readhead, providing positional feedback, onboard interpolation, and filtering optics all in a miniature package. [0B] ATOM miniature encoder system ATOM miniature encoder system ATOM is the world’s first miniature encoder with filtering optics, providing improvements in dirt immunity, signal stability and reliability for linear and rotary applications. [0B] RTLF20-S Features / benefits: Quick and simple application using Renishaw's scale applicator Low-profile stainless steel tape scaleCustomer deselectable reference marks every 50 mmHigh solvent immunityCut-to-length flexibility Compatible readheads:ATOM and ATOM DX readheadsAvailable online:ATOM ATOM2D0-100 For more details on this and other Renishaw encoder scales please visit our scales page. Related products $72.00 Side mounted applicator for RTLF self-adhesive scales with ATOM™ or ATOM DX™ encoder readheads $5.00 Reference mark deselection stickers for RTLF and RKLF encoder scales $65.00 Slim applicator for RTLF self-adhesive scales with ATOM™ or ATOM DX™ encoder readheads $21.00 IPA wipes for all encoder system installations (pack of 20) $13.00 Datum clamp for adhesive mounted RTL linear encoder tape scales $23.00 Scale end covers for RTL encoder scales $422.00 Guillotine for cutting RKL and RTL linear encoder scales $176.00 Shears for cutting RKL and RTL linear encoder scales Shopping security Recall your cart
