RKLF40H-S linear encoder tape scale (high accuracy 40 µm scale pitch, for ATOM™ and ATOM DX™ readheads)

Product code: A-6771-0100

Price: $462.00

All prices are ex sales tax

Limited Availability

Longer lead times may apply.
Contact us for more information.

Processing request

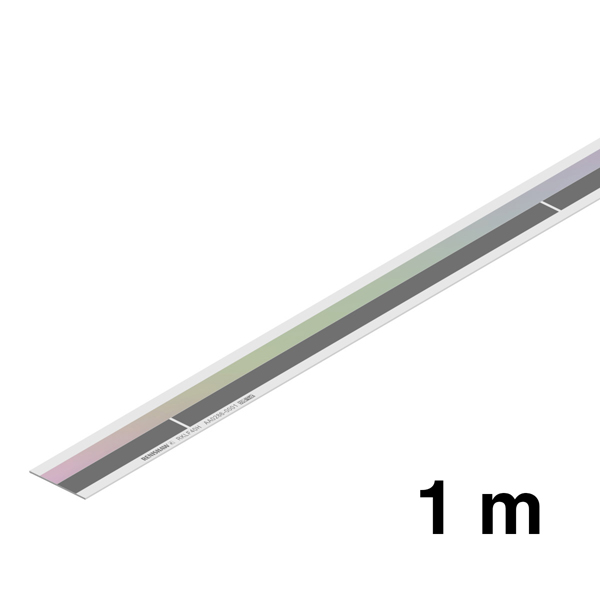

A-6771-0100 is a 1 m (1000 mm) length of RKLF40H-S (high accuracy version of RKLF40-S) incremental encoder tape scale, compatible with ATOM and ATOM DX encoder readheads.

RKLF40H-S is a 40 µm pitch narrow low profile stainless steel tape scale.

RKLF40H-S is applied with self-adhesive backing tape and mastered to the machine substrate using rigidly fixed end clamps.

For partial arc applications we recommend RKLF40-S encoder scale.



Technical table

Accuracy (± µm)5
Coefficient of thermal expansionMatches that of substrate (when end clamps used)
Mount typeSubstrate mastered
Scale length (m)1
Scale pitch (µm)40
Scale typeIncremental

Technical documentation

RKLF40H-S Features / benefits:

  • Quick and simple application using Renishaw's scale applicators

  • Narrow, low-profile, highly flexible stainless steel tape scale
  • Customer deselectable reference marks every 50 mm
  • Cut-to-length capability
  • High solvent immunity



Compatible readheads:

ATOM and ATOM DX readheads

Available online:

ATOM ATOM4D0-100

ATOM DX A4L0Y00Z10F

ATOM DX A4A0X15A10F

ATOM DX A4A0Y15A10F



For more details on this and other Renishaw encoder scales please visit our scales page.
