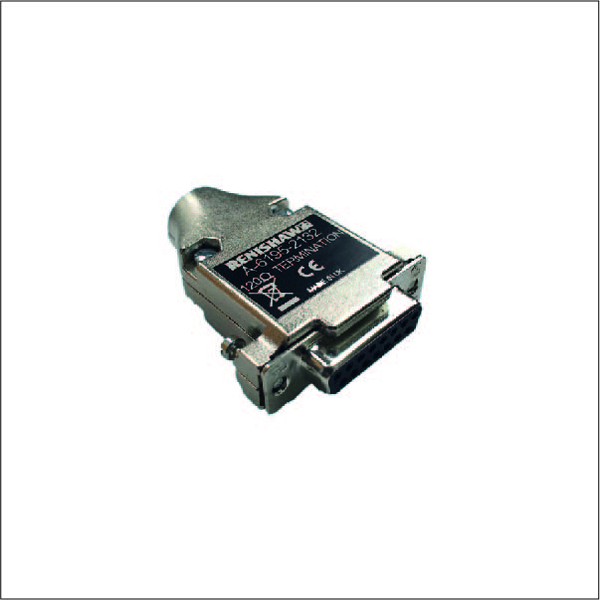

ADTi-100 analogue output termination tool Product code: A-6195-2132 Ohm termination tool120 Ohm termination tool[0B] Ohm termination tool 120 Ohm termination tool [0B] Price: $78.00 All prices are ex sales tax Stocked itemNormally dispatched within 2 working days Add to new group Before you begin to add items to your favourites please create your first group: A favourites group name can only be 1-80 alphanumeric characters and must not begin with white space Product sucessfully added to View favourites Processing request When connecting a QUANTiC analogue readhead to an ADTi-100 Advanced Diagnostic Tool in standalone mode, the termination tool connected to the output of the ADTi-100 ensures the correct 120 Ohm termination for readhead operation. Technical tableCable termination15-way D typeReadhead accessory typeTermination tools Technical documentation Advanced Diagnostic Tool ADTi-100 Advanced Diagnostic Tool ADTi-100 The ADTi-100 (A-6195-0100) is used in conjunction with a PC* running the ADT View software†. It provides comprehensive real-time feedback from QUANTiC™, VIONiC™ and ATOM DX™ encoders, aiding installation and diagnostics, as well as allowing system optimisation. [0B] Advanced Diagnostic Tools and ADT View software (version 3.12.0.0) Advanced Diagnostic Tools and ADT View software (version 3.12.0.0) This user guide describes how to use the Advanced Diagnostic Tools ADTa-100 and ADTi-100 and ADT View software. [0B] Shopping security Recall your cart
